Hyundai Palisade. Assist mode

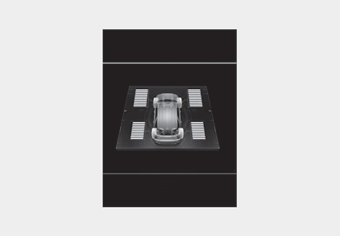

SCC/LKA/DAW

This mode displays the state of the Smart Cruise Control (SCC), Lane Keeping Assist (LKA) and Driver Attention Warning (DAW).

Hyundai Palisade. Assist mode

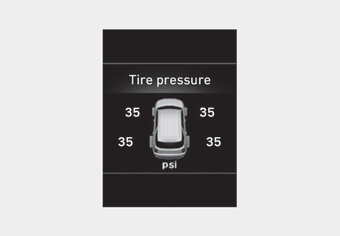

Tire Pressure

This mode displays information related to Tire Pressure.

Driving force distribution (AWD)

Hyundai Palisade. Assist mode

This mode displays information related to AWD driving force.
