Components

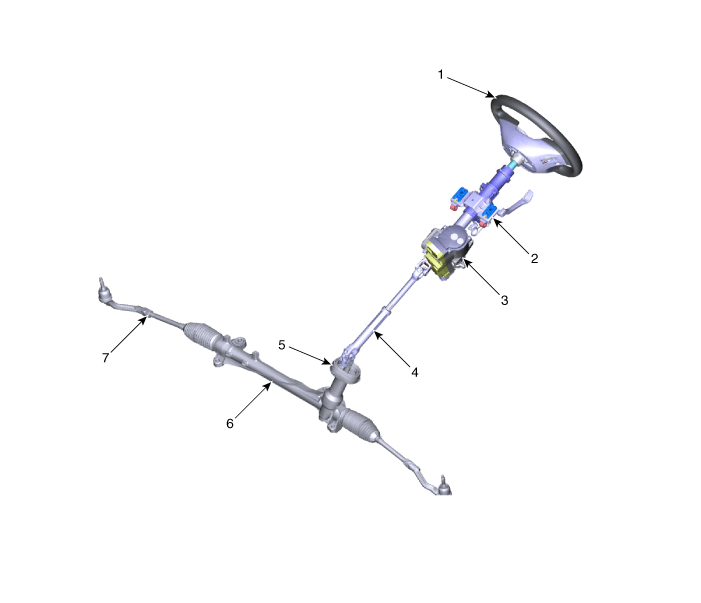

[C-MDPS]

Hyundai Palisade. Components and components location

1. Steering wheel
2. Steering column
3. MDPS powerpack assembly
4. Universal joint
5. Dust packing
6. Steering gear box
7. Bellows
8. Tie rod end

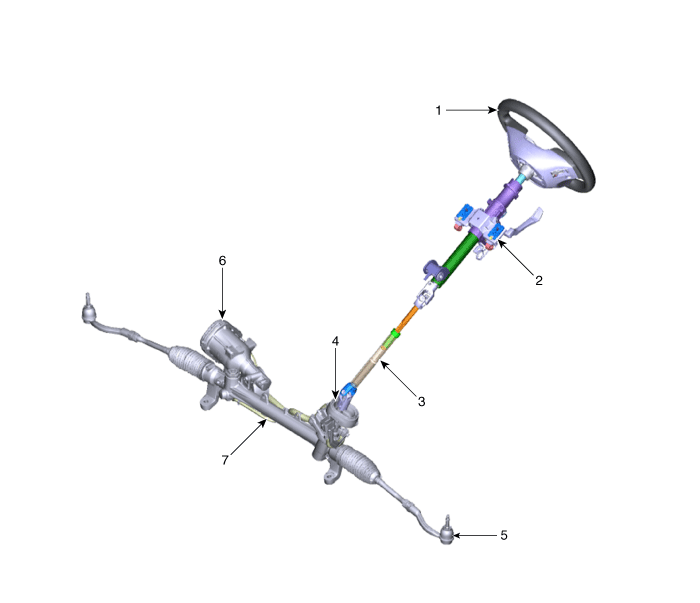

[R-MDPS]

Hyundai Palisade. Components and components location

1. Steering wheel
2. Steering column
3. Universal joint
4. Dust packing
5. Tie rod end
6. R-MPDS Motor
7. Steering gear box
