Hyundai Palisade: Power Windows / Components and components location

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Power Windows / Components and components location

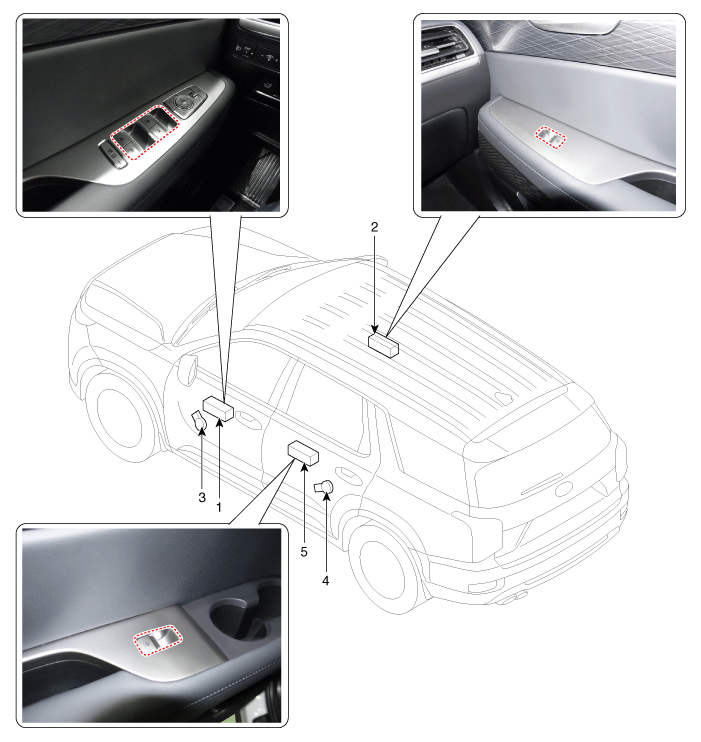

Component Location

Hyundai Palisade. Components and components location

1. DDM (Driver door module)
2. ADM (Assistant door module)
3. Front window motor
4. Rear window motor
5. Rear window switch
