Hyundai Palisade: Power Tailgate Module / Components and components location

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Power Tailgate Module / Components and components location

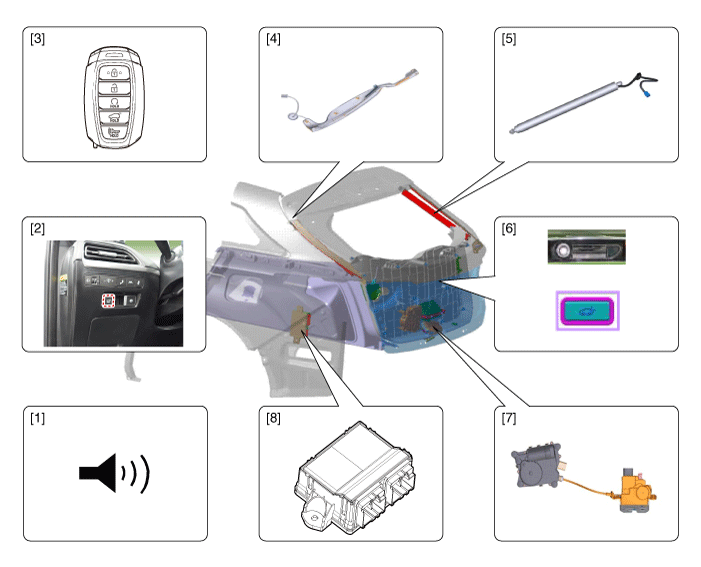

Component Location (1)

Hyundai Palisade. Components and components location

1. Buzzer
2. Power tailgate switch
3. FOB key
4. Anti Pinch Strip
5. Spindle Drive
6. Tailgate Trim Switch
7. Power Latch
8. PTG Control Module

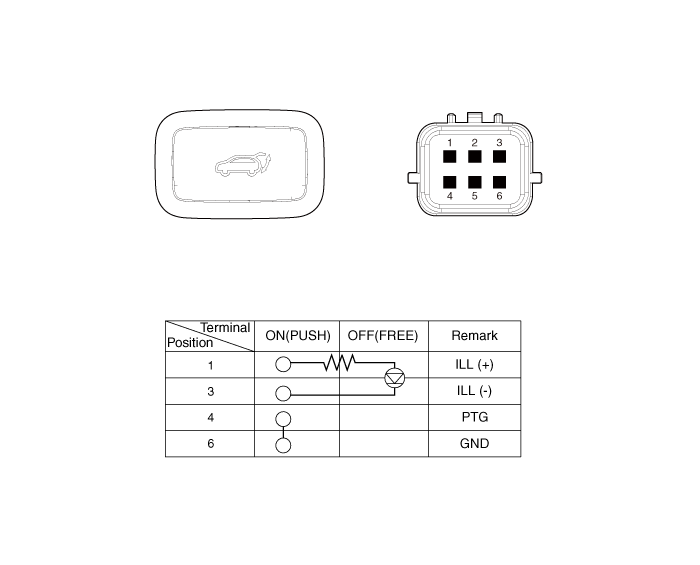

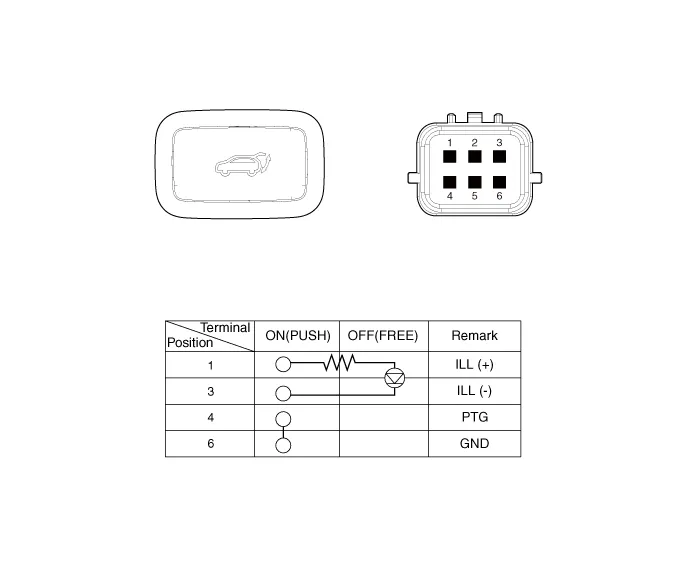

[Tail Gate Inner Switch]

Hyundai Palisade. Components and components location

    Power Tailgate Module

    ..

    Description and operation

    Description Power tailgate is an electro-mechanical system designed to provide power opening and closing of the tailgate through the push of a button of a remote key (fob), console switch, inner switch or an outside handle switch of the tailgate...
