Hyundai Palisade: Front View Camera System / Front View Camera Unit

Hyundai Palisade (LX2) 2020-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Front View Camera System / Front View Camera Unit

Schematic diagrams

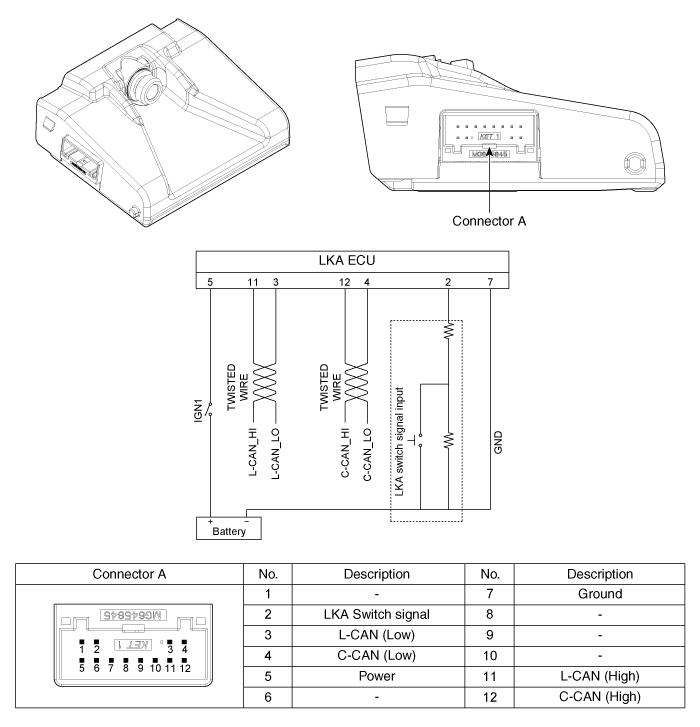

Circuit Diagram

Hyundai Palisade. Schematic diagrams

Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.

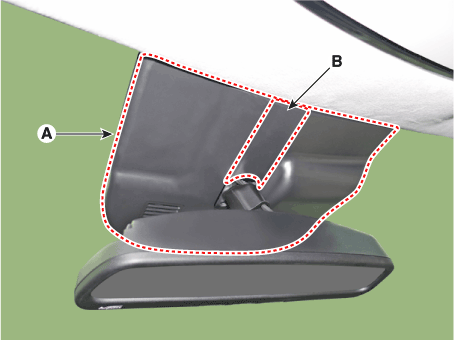

Remove the inside rear view mirror cover (A) and rain sensor cover (B).

Hyundai Palisade. Repair procedures
3.

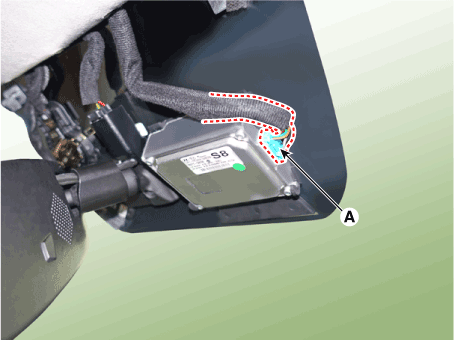

Disconnect the front view camera unit connector (A).

Hyundai Palisade. Repair procedures
4.

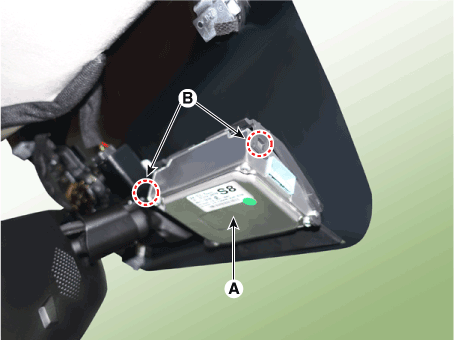

Separate the fixed points (A) of coupler, remove the front view camera (B).

Hyundai Palisade. Repair procedures
Installation
Hyundai Palisade. Repair procedures
•
Perform the camera calibration in the following case.
(Refer to Front View Camera System - "Repair Procedure")
–
If the front view camera is replaced with a new one.
–
If the front view camera is removed and mounted.
–
If the front view camera coupler of the windshield glass is deformed.
–
If the windshield glass is changed.
–
When a failure code (System Out of Calibration) occur.
1.
Install in the reverse order of removal.
2.

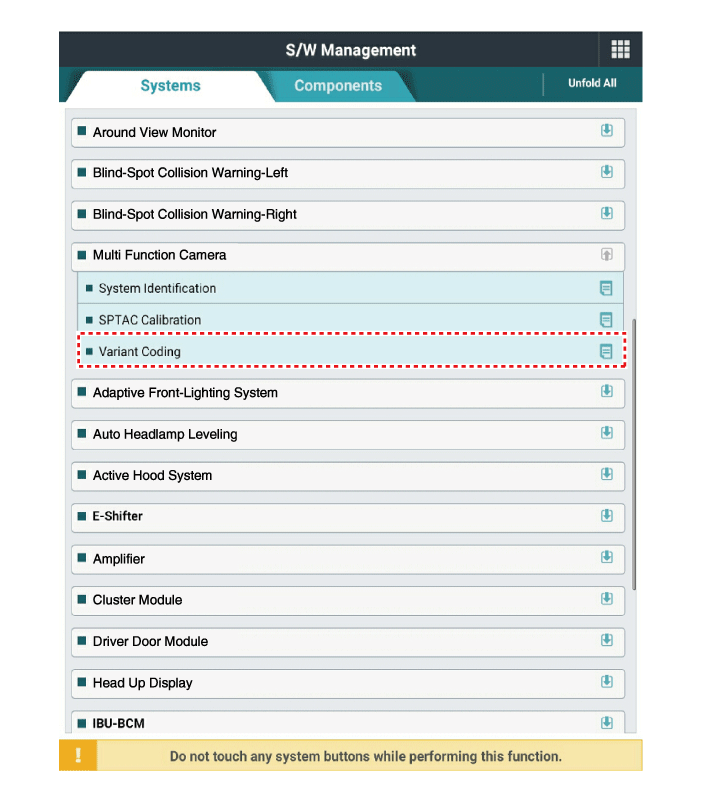

When if replacing the front view camera with a new one, perform the "Variant Coding" procedure by using the Diagnostic Tools.

Hyundai Palisade. Repair procedures
3.
Perform the front view camera unit calibration.
(Refer to Repair procedures - "Service Point Target Auto Calibration (SPTAC)")
