Hyundai Palisade. Instrument Panel Overview

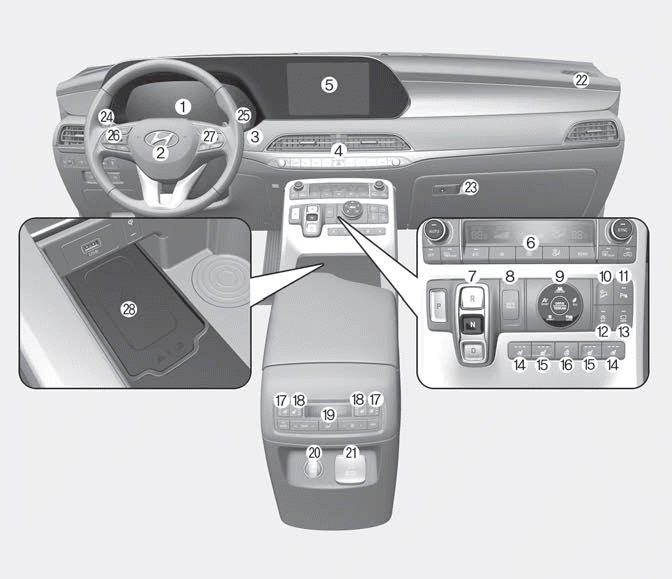

1. Instrument cluster
2. Driver's front air bag
3. Key ignition switch/
Engine Start/Stop button
4. Hazard warning flasher switch
5. Audio/Video/Navigation System
6. Manual climate control system/
Automatic climate control system
7. Automatic transmission shift button
8. Auto Hold
9. Drive mode knob
10. DBC button
11. Parking Distance Warning (Reverse/Forward) button
12. Idle stop and go (ISG) OFF button
13. Surround view monitor
14. Air ventilation seat
15. Seat warmer
16. Heated steering wheel
17. Air ventilation seat (2nd row)
18. Seat warmer (2nd row)
19. Climate control system (rear)
20. Power outlet
21. AC inverter
22. Passenger's front air bag
23. Glove box
24. Light control/Turn signals
25. Wiper/Washer
26. Steering wheel audio controls
27. Smart cruise controls
28. Wireless cellular phone charging system

    Interior Overview

    1. Inside door handle 2. Central door lock/unlock switch 3. Power window switches 4. Power window lock button/ Electronic child safety lock button 5...

    Engine Compartment

    1. Engine coolant reservoir 2. Radiator cap 3. Brake fluid reservoir 4. Air cleaner 5. Engine oil filler cap 6. Engine oil dipstick 7. Windshield washer fluid reservoir 8...
