Hyundai Palisade: Windshield defrosting and defogging / Manual Climate Control System

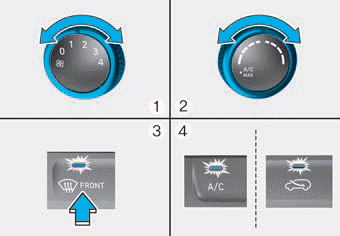

To defog inside windshield
1. Select any fan speed except "0" position.
2. Select the desired temperature.
3. Select the
or
position.
4. Fresh mode will be selected automatically.
Additionally, the air conditioning
will automatically operate if
the mode is selected to the
position.
Check to make sure the A/C is ON. If the A/C ON LED is not illuminated, press the A/C button once to turn the air conditioner ON.
Check to make sure the air intake control is in Fresh mode. If the air intake control LED is illuminated, press the button once to enable Fresh mode (LED OFF).

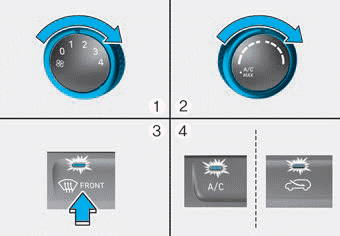

To defrost outside windshield
1. Set the fan speed to the highest setting (knob rotated all the way to the right).
2. Set the temperature control to the highest temperature setting.
3. Select the position.
4. Fresh mode (Recirculation OFF) and A/C ON will automatically be selected.
Windshield defrosting and defogging
WARNING
Windshield heating
Do not use the or
position
during cooling operation in
extremely humid weather. The
difference between the temperature
of the outside air and that
of the windshield could cause
the outer surface of the windshield
to fog up, causing loss of
visibility could cause an accident
resulting in serious injury
or death...
Automatic Temperature Control
System
To defog inside windshield
1. Select the desired fan speed.
2. Select the desired temperature.
3. Press the defroster button ().
4. Fresh mode will be selected automatically...
