Hyundai Palisade: Gauges and Meters / Odometer & Range

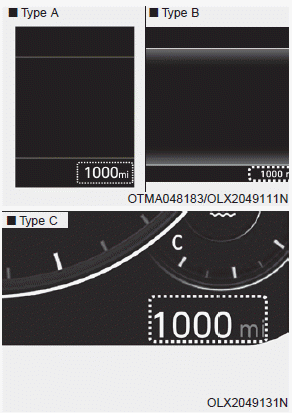

Odometer
The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

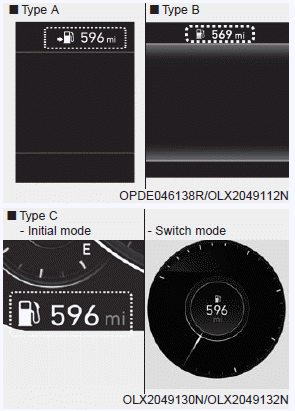

Range
- The range is the estimated distance the vehicle can be driven with the remaining fuel.
- If the estimated distance is below 1 mi. (1 km), the trip computer will display "----" as range.
Information
- If the vehicle is not on level ground or the battery power has been interrupted, the range function may not operate correctly.
- The range may differ from the actual driving distance as it is only an estimate of the available driving range for the vehicle and driving conditions.
- The trip computer may not register additional fuel if less than 1.6 gallon (6 liters) of fuel are added to the vehicle.
- The range may vary significantly based on driving conditions, driving habits, and condition of the vehicle.
Outside temperature gauge
This gauge indicates the current outside
air temperature by 1 degrees F
(1 degrees C).
- Temperature range : -40°F ~ 140°F
(-40°C ~ 60°C)
Note that the temperature indicated
on the LCD display may not change
as quickly as the outside temperature
(there may be a slight delay
before the temperature changes...
Transmission Shift Indicator
Automatic transmission shift
indicator
This indicator displays the gear position
of the shift button.
■ Type A
■ Type B
Shift indicator pop-up (if equipped)
The pop-up indicates the current
gear position displayed in the cluster
for about 2 seconds when shifting
into other positions (P/R/N/D)...
