Hyundai Palisade: Lubrication System / Oil Pan

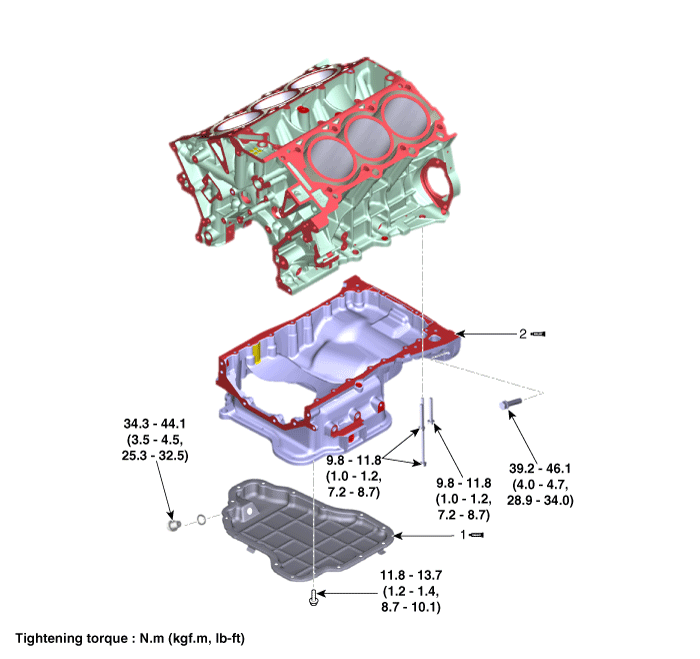

Components and components location
1. Lower oil pan
|
2. Upper oil pan
|
Repair procedures
• |
Be careful not to damage the parts located under the vehicle
(floor under cover, fuel filter, fuel tank and canister) when
raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
|
|
[Lower oil pan]
1. |
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
|
2. |
Drain the engine oil.
(Refer to Lubrication System - "Engine Oil")
|
3. |

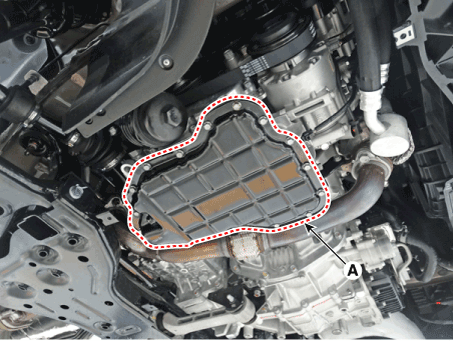

Remove the lower oil pan (A).
Insert the blade of SST (09215-3C000) between the upper oil pan and
lower oil pan. Cut off applied sealer and remove the lower oil pan.
•
|
Be careful not to damage the contact surfaces of upper
oil pan and lower oil pan.
|
|
•
|

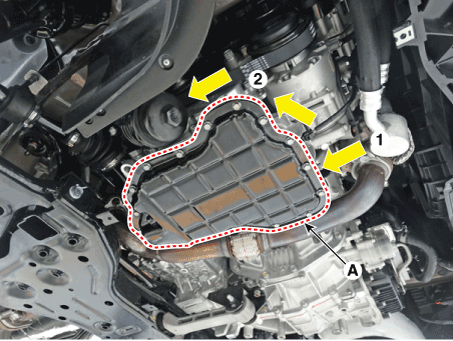

Insert the SST between the lower oil pan and the upper
oil pan by tapping it with a plastic hammer in the direction
of ① arrow.
|
•
|
After tapping the SST with a plastic hammer along the
direction of ② arrow around more than 2/3 edge of the
lower oil pan, remove it from the upper oil pan.
|
•
|
Do not turn over the SST abruptly without tapping as
the SST may get damaged.
|
|
|
[Upper oil pan]
1. |
Remove the lower oil pan.
|
2. |

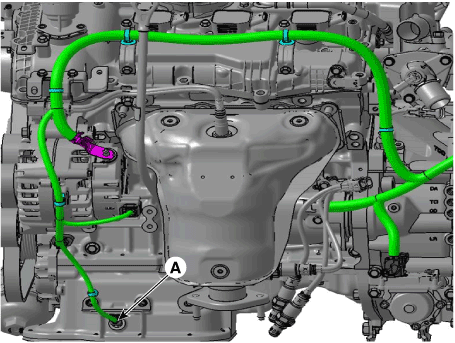

Disconnect the oil pump solenoid valve extension wiring connector (A).
|
3. |

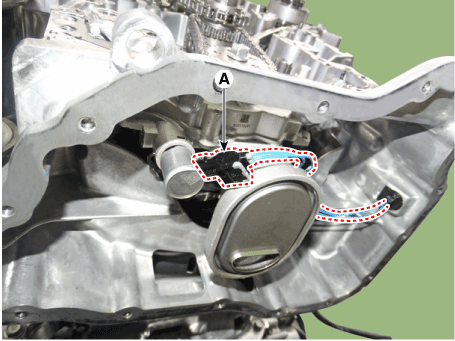

Disconnect the oil pump solenoid valve connector (A).
|
4. |
Remove the front muffler.
(Refer to Intake and Exhaust System - "Muffler")
|
5. |
Separate the compressor.
(Refer to Heating, Ventilation Air conditioning - "Compressor")
|
6. |

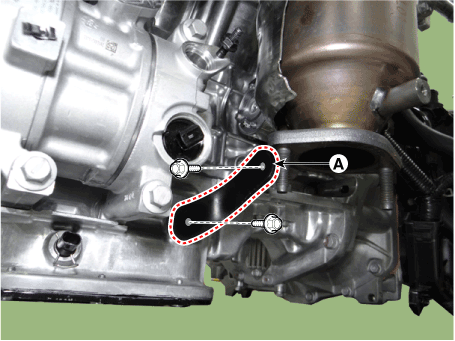

Remove the LH exhaust manifold stay (A).
Tightening torque :
24.5 - 35.3 N.m (2.5 - 3.6 kgf.m, 18.1 - 26.0 lb.ft)
|
|
7. |

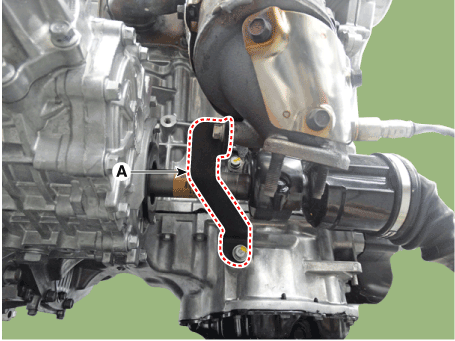

Remove the RH exhaust manifold stay (A).
Tightening torque :
24.5 - 35.3 N.m (2.5 - 3.6 kgf.m, 18.1 - 26.0 lb.ft)
|
|
8. |
Remove the surge tank.
(Refer to Intake and Exhaust System - "Surge Tank")
|
9. |
Remove the LH and RH cylinder head cover.
(Refer to Cylinder Head Assembly - "Cylinder Head Cover")
|
10. |
Install the engine support fixture.
(Refer to Automatic Transaxle System - "Special Service Tools")
|
11. |
Remove the timing chain cover.
(Refer to Timing System - "Timing Chain Cover")
|
12. |

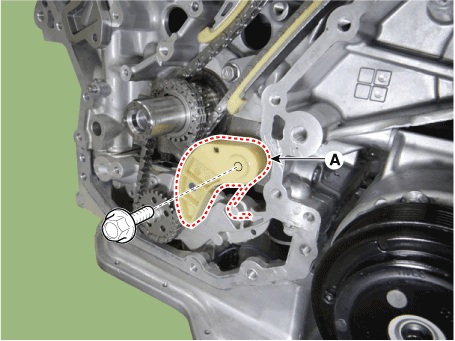

Remove the oil pump chain tensioner (A).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
|
|
13. |

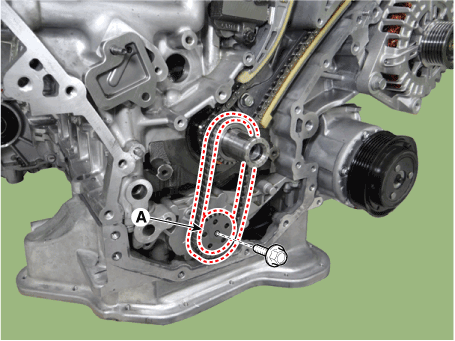

Remove the oil pump chain sprocket (A).
Tightening torque :
19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)
|
|
14. |

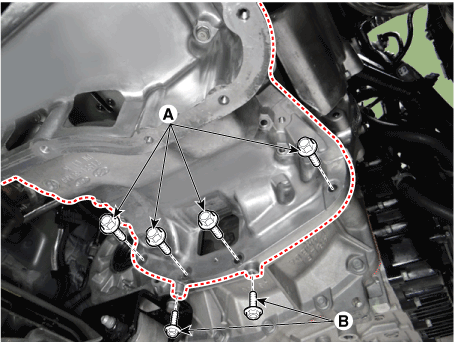

Remove the transaxle mounting bolt (A) and upper oil pan mounting bolt
(B).
Tightening torque
Bolt (A) : 39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb.ft)
Bolt (B) : 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
|
|
15. |
Insert the blade of SST (09215-3C000) between the upper oil pan and
cylinder block. Cut off applied sealer and remove the upper oil pan
(A).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
|
|
[Lower oil pan]
1. |
Install the lower oil pan (A).
(1) |
Using a gasket scraper, remove all the old packing material
from the gasket surfaces.
|
(2) |

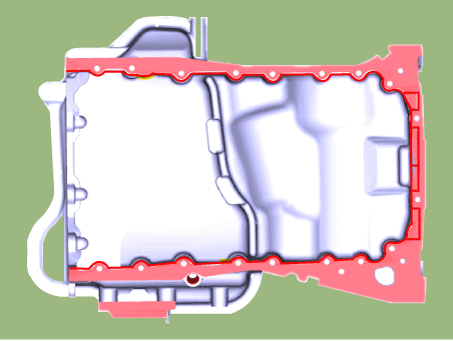

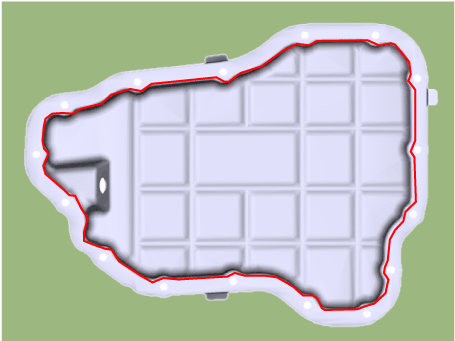

Before assembling the oil pan, apply liquid sealant TB 1217H
on the oil pan. Assemble the part within 5 minutes of applying
sealant.
Bead width : 2.5 mm (0.1 in.)
|
• |
Clean the sealing face before assembling two
parts.
|
• |
Remove harmful foreign matters on the sealing
face before applying sealant.
|
• |
When applying sealant gasket, sealant must not
protrude into the oil pan.
|
• |
To prevent leakage of oil, apply sealant gasket
to the inner threads of the bolt holes.
|
|
|
(3) |
Install the oil pan (A).
Uniformly tighten the bolts in several passes.
Tightening torque :
11.8 - 13.7N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)
|
|
|
2. |
After assembly, wait for at least 30 minutes before filling the engine
with oil.
|
3. |
Install the remaining parts in the reverse order of removal.
|
[Upper oil pan]
1. |
Install the upper oil pan.
a. |
Using a gasket scraper, remove all the old packing material
from the gasket surfaces.
|
b. |
Before assembling the oil pan, apply liquid sealant TB 1217H
on the oil pan. Assemble the part within 5 minutes of applying
sealant.
Bead width : 2.5 mm (0.1 in.)
|
• |
Clean the sealing face before assembling two
parts.
|
• |
Remove harmful foreign materials on the sealing
face before applying sealant
|
• |
When applying sealant gasket, sealant must not
protrude into the oil pan.
|
• |
To prevent leakage of oil, apply sealant gasket
to the inner threads of the bolt holes.
|
|
|
|
2. |
Install the remaining parts in the reverse order of removal.
|
