| Removal |
| 1. |
Disconnect (-) battery terminal.
|
| 2. |

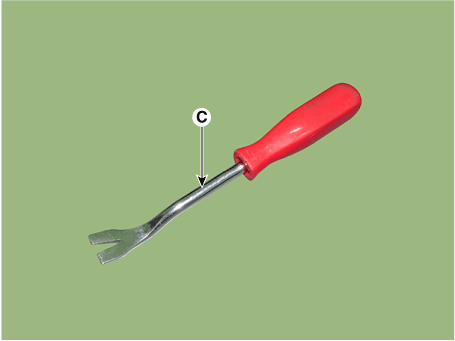

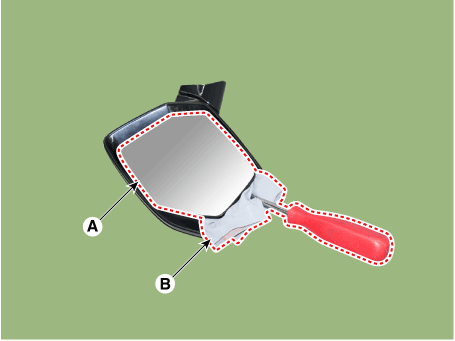

Using a fastener remover (C), remove the mirror (A) as illustration
below.
|
| 3. |

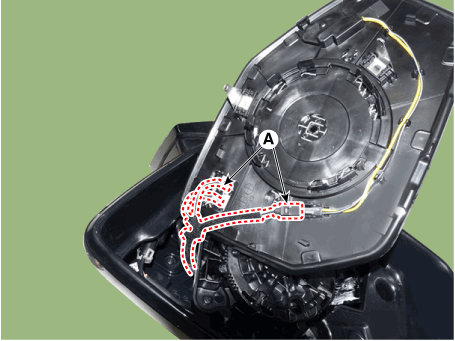

Disconnect heat wire connectors (A) and then remove the mirror.
|
| 4. |

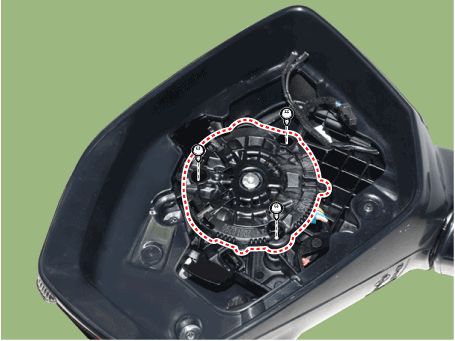

Remove the mirror actuator mounting screw.
|
| 5. |

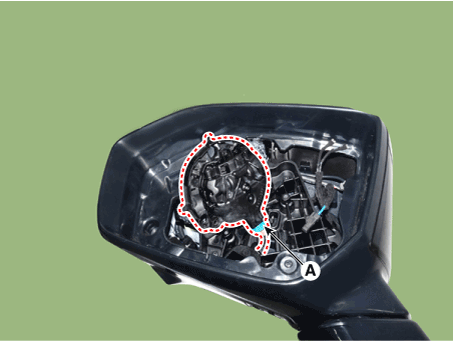

Disconnect the connector (A) and then remove the mirror actuator.
|
| Installation |
| 1. |
Connect the actuator connector and then install the mirror actuator.
|
| 2. |
Connect mirror heat wire connector and then install the mirror.
|
| 3. |
Connect (-) battery terminal then check if mirror works normally.
|
