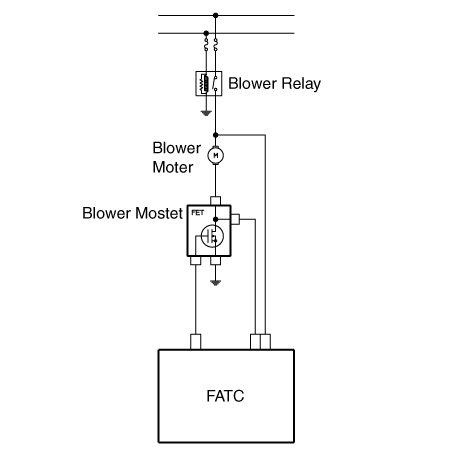

| Inspection |
| 1. |
Turn the ignition switch ON.
|
| 2. |
Manually operate the control switch and measure the voltage of the blower
motor.
|
| 3. |
Select the control switch to raise the voltage until high speed.
Specification
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4. |
If the measured voltage is not within specification, substitute with
a known-good power mosfet and check for proper operation.
|
| 5. |
Replace the power mosfet if it is proved that there is a problem with
it.
|
| Replacement |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |

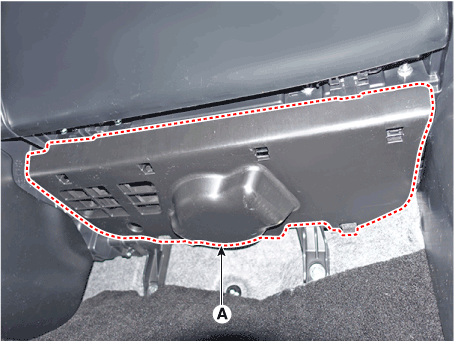

Remove the passenger side crash pad under cover (A).
|
| 3. |

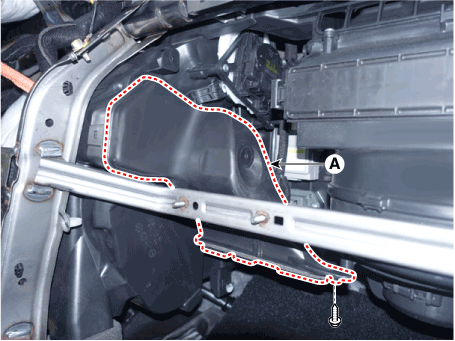

Loosen the mounting screws and remove the passenger shower duct (A).
|
| 4. |

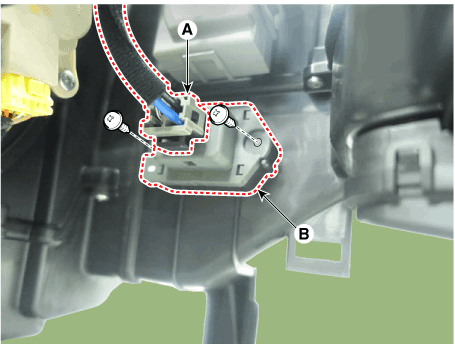

Separate the connector (A), loosen the mounting screws and remove the
power mosfet (B).
|
| 5. |
Install in the reverse order of removal.
|
