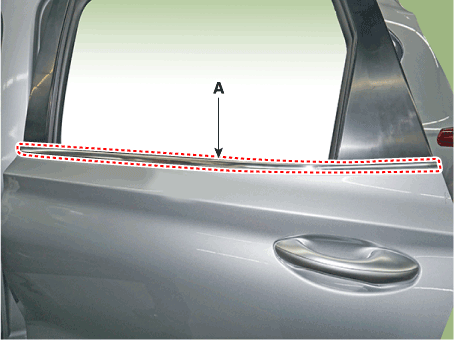

Hyundai Palisade: Rear Door / Rear Door Belt Outside Weatherstrip

Rear Door Latch

Components and components location Component Location 1. Rear door latch Repair procedures Replacement    • Put on gloves to prevent hand injuries...

Rear Door Belt Inside Weatherstrip

Repair procedures Replacement 1. Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim") 2...

Other information:

Hyundai Palisade (LX2) 2020-2025 Service Manual: AVN Head Unit

Components and components location Components Connector Pin Information No Connector A (ExternalAmplifier) Connector A (Internal Amplifier) Connector B Connector C 1 - Rear door speaker LH (+) - - 2 - Rear door speaker LH (-) Mic (+) I_CAN (High) 3 Navigation voice (+) - - - 4 External amplifier SPDIF (+) - - - 5 Reset Reset Antenna dummy power - 6 RVM : Camera Power , SVM : - RVM : Camera Power , SVM : - Illumination (+) - 7 RVM : Camera Video , SVM : - RVM : Camera Video , SVM : - M-CAN (High) - 8 - - - - 9 - - - - 10 - - Battery (+) - 11 AUX DETECT AUX DETECT Battery (+) - 12 Steering wheel remote Steering wheel remote Ground - 13 - Front door speaker LH (+) Ground - 14 - Front door speaker LH (-) - - 15 - Front door speaker RH (-) Mic (-) - 16 - Front door speaker RH (+) - (SVM type:SVM Detect2) MTS Key 17 Navigation voice (-) - - - 18 External amplifier SPDIF (-) - - - 19 External amplifier SPDIF (Ground) - Illumination (-) - 20 RVM : Camera Power GND , SVM : - RVM : Camera Power GND , SVM : - M-CAN (Low) - 21 RVM : Camera Video GND , SVM : - RVM : Camera Video GND , SVM : - - - 22 - - ACC 23 - - Keyboard Power 24 - - - 25 - - - 26 Steering wheel remote ground Steering wheel remote ground - 27 - Rear door speaker RH (-) - 28 - Rear door speaker RH (+) - 29 - - - 30 - - - 31 - - - 32 SVM DETECT 1 SVM DETECT 1 - 33 RVM : Camera Shield GND , SVM : - RVM : Camera Shield GND , SVM : - IGN 1 34 - - Keyboard GND 35 - - - 36 - - 37 - - 38 Vehicle speed Vehicle speed Repair procedures Removal 1...

Hyundai Palisade (LX2) 2020-2025 Service Manual: Battery

Specifications Specification Item Specification Model type AGM80L-BCI Capacity [20HR/5HR] (AH) 80/64 Cold Cranking Amperage (A) 800 (SAE) / 640 (EN) Reserve Capacity (Min) 155 ▷CMF68L-DIN Item Specification Capacity [20HR / 5HR] (AH) 68 / 54 Cold Cranking Amperage (A) 600 (SAE / EN) Reserve Capacity (Min) 113 ▷CMF80L-DIN Item Specification Capacity [20HR / 5HR] (AH) 80 / 64 Cold Cranking Amperage (A) 660 (SAE / EN) Reserve Capacity (Min) 145 ▷CMF90L-DIN Item Specification Capacity [20HR / 5HR] (AH) 90 / 72 Cold Cranking Amperage (A) 740 (SAE) / 740 (EN) Reserve Capacity (Min) 170 ▷CMF68L-DIN [Openable] Item Specification Capacity [20HR / 5HR] (AH) 68 / 54 Cold Cranking Amperage (A) 600 (SAE / EN) Reserve Capacity (Min) 113 ▷CMF80L-DIN [Openable] Item Specification Capacity [20HR / 5HR] (AH) 80 / 64 Cold Cranking Amperage (A) 660 (SAE / EN) Reserve Capacity (Min) 145 ▷CMF90L-DIN [Openable] Item Specification Capacity [20HR / 5HR] (AH) 90 / 72 Cold Cranking Amperage (A) 740 (SAE) / 740 (EN) Reserve Capacity (Min) 170    • Model type description • Cold Cranking Ampere (CCA) : A rating used in the battery industry to define a battery's ability to start an engine in cold temperatures...
