Components and components location

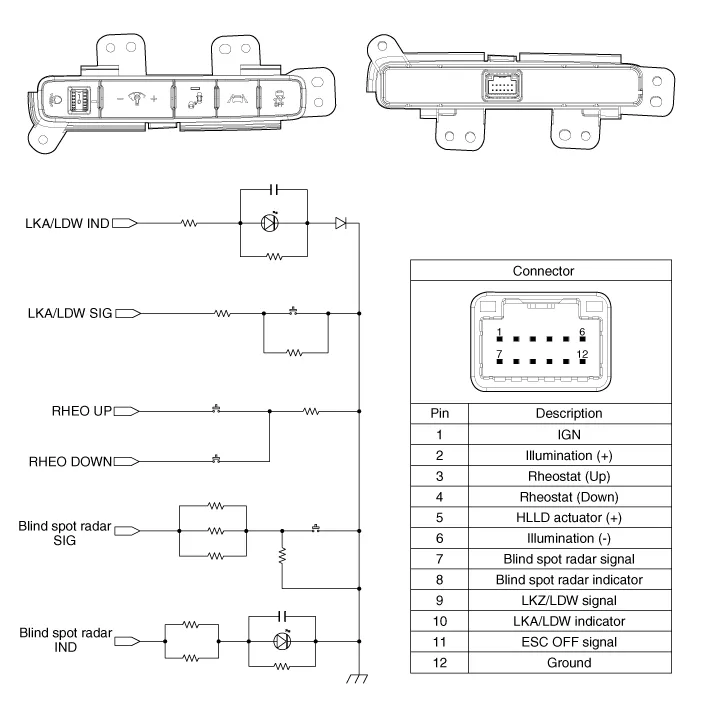

Components

Hyundai Palisade. Components and components location

Repair procedures
Inspection
Rheostat Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
3.
Remove the left side air vent duct.

Hyundai Palisade. Repair procedures

4.
Remove the switch assembly after loosening mounting screws.

Hyundai Palisade. Repair procedures

5.
Remove the rheostat switch connector.

Hyundai Palisade. Repair procedures

6.
Check for intensity of new rheostat switch. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, it can be assumed that the rheostat is normal.

Hyundai Palisade. Repair procedures

    Hazard Lamp Switch
