Hyundai Palisade: Rear View Monitor (RVM) / Schematic diagrams

Hyundai Palisade (LX2) 2020-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Rear View Monitor (RVM) / Schematic diagrams

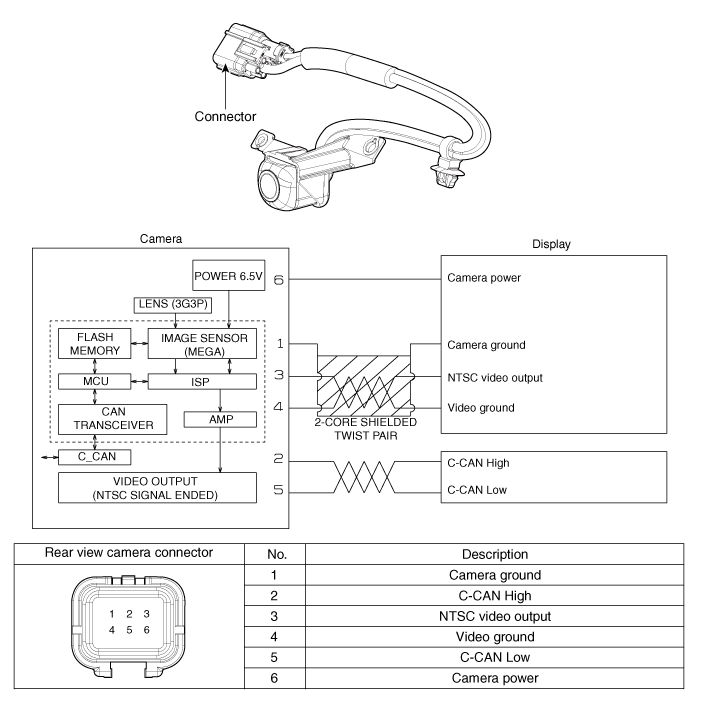

Circuit Diagram

Hyundai Palisade. Schematic diagrams

    Components and components location

    ..

    Description and operation

    Description Rear view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position...
