Hyundai Palisade: Parking Brake System / Schematic diagrams

Hyundai Palisade (LX2) 2020-2025 Service Manual / Brake System / Parking Brake System / Schematic diagrams

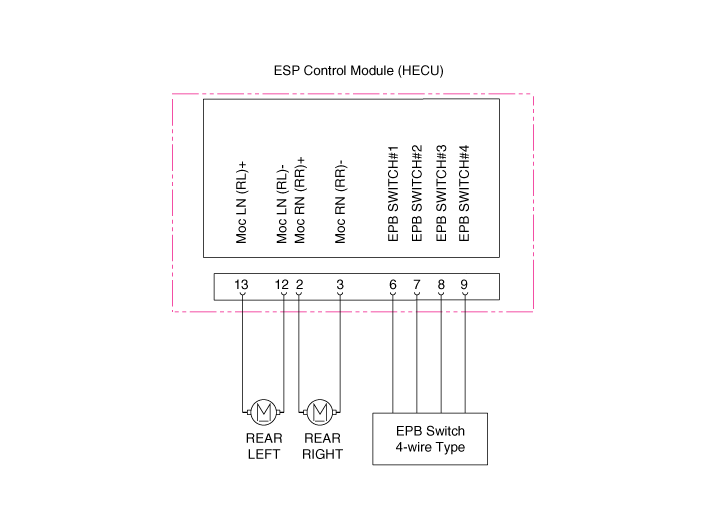

Circuit Diagram

Hyundai Palisade. Schematic diagrams

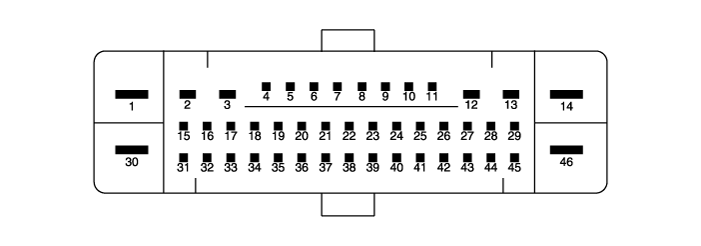

Terminal Function

Hyundai Palisade. Schematic diagrams

Pin No
Fuction
Pin No
Fuction
6
Electrical parking brake signal 1
2
Rear right EPB motor power
7
Electrical parking brake signal 2
3
Rear right EPB motor ground
8
Electrical parking brake signal 3
12
Rear left EPB motor ground
9
Electrical parking brake signal 4
13
Rear left EPB motor power
