Hyundai Palisade: Seats / Seat Warmers and Air
Ventilation Seats
Seat warmers (if equipped)
Seat warmers are provided to warm
the seats during cold weather.
WARNING
The seat warmers can cause a
SERIOUS BURN, even at low
temperatures and especially if
used for long periods of time.
Passengers must be able to feel
if the seat is becoming too warm
so they can turn it off, if needed.
People who cannot detect temperature
change or pain to the
skin should use extreme caution,
especially the following
types of passengers:
- Infants, children, elderly or
disabled persons, or hospital
outpatients.
- People with sensitive skin or
who burn easily.
- Fatigued individuals.
- Intoxicated individuals.
- People taking medication that
can cause drowsiness or
sleepiness.
WARNING
NEVER place anything on the
seat that insulates against heat
when the seat warmer is in operation,
such as a blanket or seat
cushion. This may cause the
seat warmer to overheat, causing
a burn or damage to the seat.
NOTICE
To prevent damage to the seat
warmers and seats:
- Never use a solvent such as
paint thinner, benzene, alcohol
or gasoline to clean the seats.
- Do not place heavy or sharp
objects on seats equipped with
seat warmers.
- Do not change the seat cover. It
may damage the seat warmer.

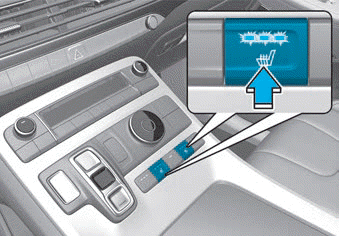

■ Front seat
■ Rear seat (2nd row)
While the engine is running, push
either of the switches to warm the
driver's seat or front passenger's
seat.
During mild weather or under conditions
where the operation of the seat
warmer is not needed, keep the
switches in the OFF position.
- Each time you push the switch, the
temperature setting of the seat
changed as shown below:
- When pressing the switch for
more than 1.5 seconds with the
seat warmer operating, the seat
warmer will turn OFF.
- The seat warmer defaults to the
OFF position whenever the vehicle
is turned on.
Information
With the seat warmer switch in the
ON position, the heating system in the
seat turns off or on automatically
depending on the seat temperature.
The headrest will fold down automatically
when folding the seatback.
To fold the headrest manually:
- Pull the strap.
To unfold the headrest manually:
- Raise the headrest manually...
■ Front seat
■ Rear seat (2nd row)
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks...
