Repair procedures
Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.

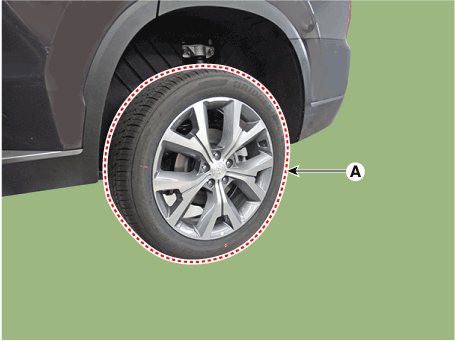

Remove the rear wheel and tire (A) from rear hub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
Hyundai Palisade. Repair procedures
Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

Hyundai Palisade. Repair procedures

3.
Disconnect the EPB connector (A).

Hyundai Palisade. Repair procedures

4.

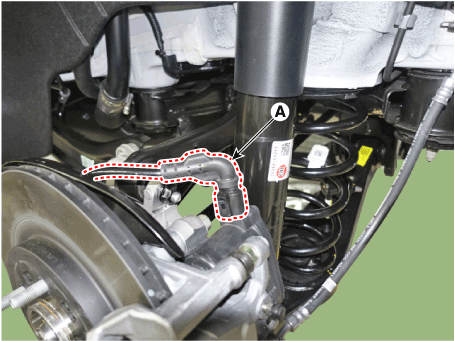

Loosen the bolt (A) and then remove the rear wheel speed sensor.
Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Hyundai Palisade. Repair procedures

5.

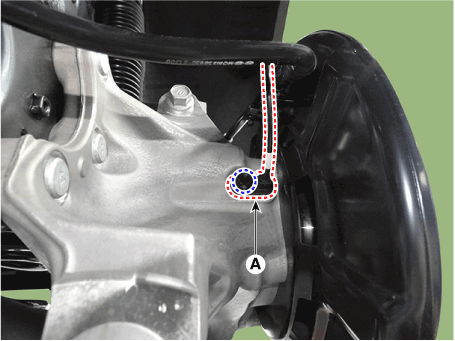

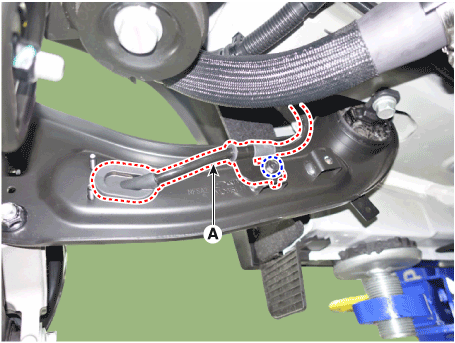

Loosen the bolt and then remove the rear wheel speed cable (A).
Tightening torque :
9.8 - 16.7 N.m (1.0 - 1.7 kgf.m, 7.2 - 12.3 lb-ft)

Hyundai Palisade. Repair procedures

6.

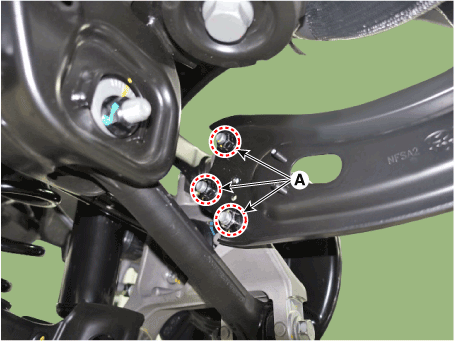

Loosen the nut (A) and then disconnect the trailing arm from the rear axle.
Tightening torque:
98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)
Hyundai Palisade. Repair procedures
Set up the transmission jack under the lower arm in order to remove it in no-load condition.

Hyundai Palisade. Repair procedures

7.

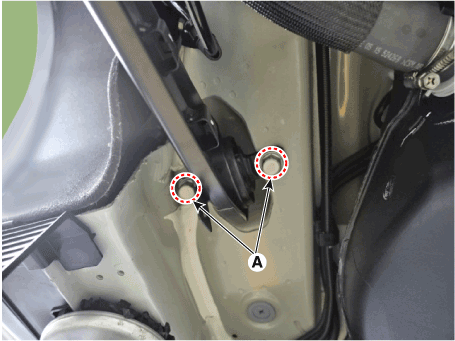

Loosen the bolt (A) and then remove the trailing arm.
Tightening torque :
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Hyundai Palisade. Repair procedures

Inspection
1.
Check the bushing for wear and deterioration.
2.
Check for all bolts and nuts.
Installation
1.
Install in the reverse order of removal.
2.
Check the alignment.
(Refer to Suspension System - "Alingment")
