Hyundai Palisade: Exterior Lights / Turn signals and lane change signals

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Convenient Features of Your Vehicle / Exterior Lights / Turn signals and lane change signals

Hyundai Palisade. signals

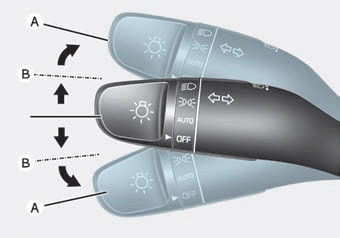

To signal a turn, push down on the lever for a left turn or up for a right turn in position (A).

If an indicator stays on and does not flash or if it flashes abnormally, one of the turn signal bulbs may be burned out and will require replacement.

One-touch turn signal function

To activate the One Touch Turn Signal function, push the turn signal lever up or down to position (B) and then release it.

The lane change signals will blink 3, 5 or 7 times.

You can activate or deactivate the One Touch Turn Signal function or choose the number of blinks (3, 5, or 7) from the User Settings mode in the LCD display.

    High Beam Assist (HBA)

    The High Beam Assist (HBA) is a system that automatically adjusts the headlamp range (switches between high beam and low beam) according to the brightness of other vehicles and road conditions...

    Battery saver function, Headlamp delay function

    Battery saver function The purpose of this feature is to help prevent the battery from being discharged. The system automatically turns off the parking lamp when the driver turns the vehicle off and opens the driver-side door...
