Component Location

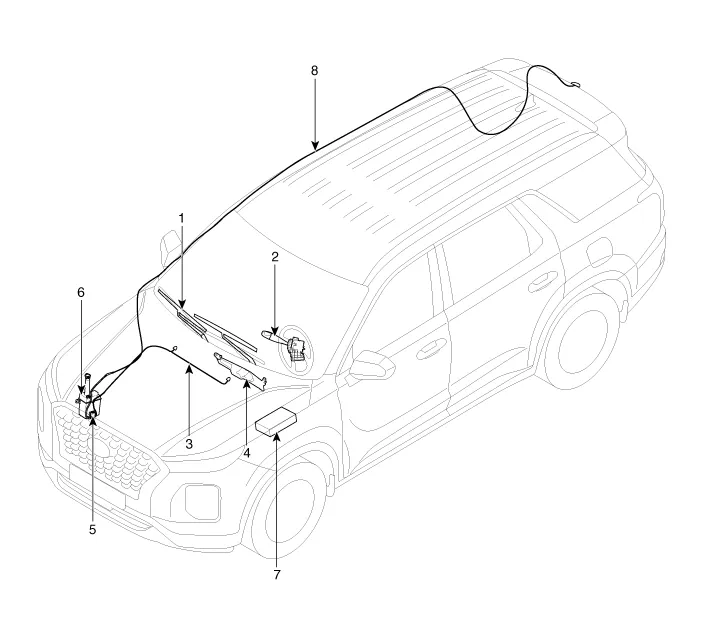

Hyundai Palisade. Components and components location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose
4. Windshield wiper motor & linkage
 5. Washer motor
6. Washer reservoir
7. Front wiper relay
8. Rear washer hose & nozzle

    Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering wheel.
