Hyundai Palisade: Electro Chromic Inside Rear View Mirror / Components and components location

ECM

Home Link + ECM

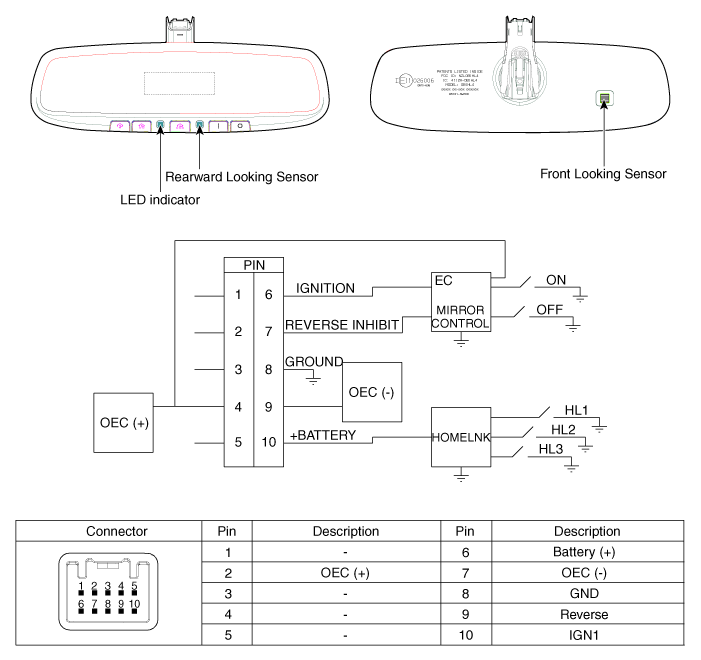

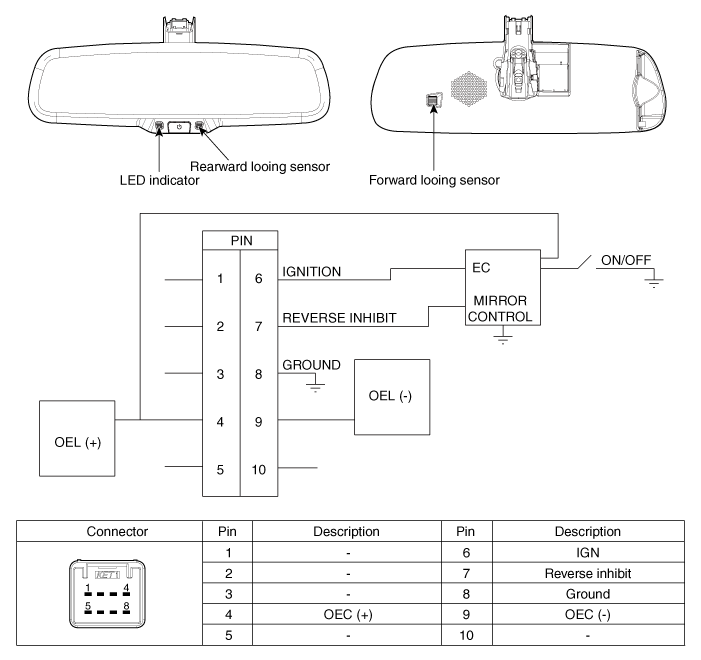

Electro Chromic Inside Rear View Mirror

..

Description and operation

Description The ECM (Electro Chromatic inside rear view Mirror) is intended dim the reflecting light in the rear view mirror. The forward facing sensor detects brightness of the surroundings, while the rearward looking sensor is for the light from the rear...

Other information:

Hyundai Palisade (LX2) 2020-2025 Service Manual: IMS (Integrated Memory System) module

Components and components location Components IMS input/output pin information No Connector A Connector B Connector C 1 Cushion extension moter (Front) B+ (Power) Seat slide motor switch (Front) 2 Seat recline motor (Front) Ground (Power) Seat recline switch (Front) 3 Seat height motor (Up) B+ (Power) Seat tilt switch (Up) 4 Seat slide motor(Front) - Seat height switch (Up) 5 Seat Cushion extension moter (Rear) Ground Seat cushion extension switch (Front) 6 Seat recline motor (Rear) B_CAN (High) 7 Seat tilt motor (Up) B_CAN (Low) 8 Seat tilt motor (Down) Lumber motor (Up) 9 Seat height motor (Down) Lumber motor (Down) 10 Seat slide motor (Rear) Seat slide sensor 11 Seat tilt sensor 12 - 13 Seat position sensor power 14 IGN 1 15 Seat slide switch (Rear) 16 Seat recline switch (Rear) 17 Seat tilt switch (Down) 18 Seat height switch (Down) 19 Seat cushion extension switch (Rear) 20 Ground 21 Lumber motor (Low) 22 IMS switch 2 23 - 24 Seat recline sensor 25 Seat height sensor 26 - 27 - 28 Battery (+) Repair procedures Removal 1...

Hyundai Palisade (LX2) 2020-2025 Service Manual: ESP Control Module

Components and components location Components 1. Front - right (FR) 2. Rear - left (RL) 3. Rear - right (RR) 4. Front - left (FL) 5. MC2 6. MC1 7. ESP control module (HECU) 8. Bracket Repair procedures Removal 1...
