Hyundai Palisade: Crash Pad / Crash Pad Under Cover
Repair procedures
| • |
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
| • |
Put on gloves to prevent hand injuries.
|
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |

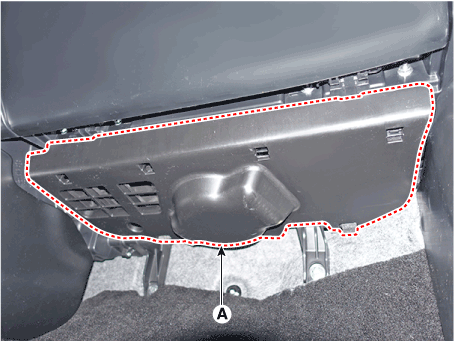

Using a flat-tip screwdriver and remove the crash pad under cover (A).
|
| 2. |
To install, reverse removal procedure.
| •
|
Replace any damaged clips (or pin-type retainers).
|
|
|
Components and components location
Component Location
1. Crash pad center garnish
3. Crash pad garnish [LH]
2...
Components and components location
Component Location
1. Crash pad lower panel
Repair procedures
Replacement
•
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components...
Other information:
Components and components location
Components
1. Warning indicator
2. SVM camera
Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2...
Description and operation
Description
Introduction of quick brake warning system (ESS)
In case of quick brake by driver, the brake lamp or turn signal is blinked to
warn against the vehicle at rear.
1.
Basic function (Blinking the brake lamp/emergency lamp)
–
Operation condition : In case of quick brake or operation of
ABS above in a certain speed
–
Releasing condition : In case of stopping the quick brake or
releasing the ABS operation
2...
