Hyundai Palisade: Sunroof / Dual wide sunroof

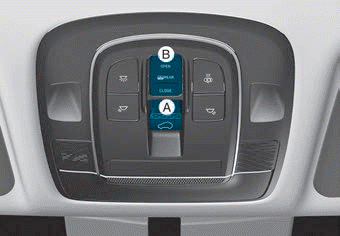

[A] : Front sunroof control lever, [B] : Rear blind control button
If your vehicle is equipped with a
dual wide sunroof, you can slide or
tilt your sunroof with the sunroof control
lever located on the overhead
console. And you can slide your rear
blind with the rear blind control button.
The ignition switch must be in the ON
position before you can open or
close the sunroof.
The sunroof can be operated for
approximately 10 minutes after the
ignition key is removed or turned to
the ACC or LOCK (or OFF) position.
However, if the front door is opened,
the sunroof cannot be operated even
within 10 minutes.
Information
- In cold and wet climates, the sunroof
may not work properly due to
freezing conditions.
- After the vehicle is washed or in a
rainstorm, be sure to wipe off any
water that is on the sunroof before
operating it.
WARNING
- Never adjust the sunroof or
sunshade while driving. This
could result in loss of control
and an accident that may
cause death, serious injury, or
property damage.
- Make sure heads, hands, arms
or any other body parts or
objects are out of the way
before operating the sunroof.
- Do not extend your head, arms
or body outside the sunroof
while driving, to avoid serious
injury.
- Do not leave the engine running
and the key in your vehicle
with unsupervised children.
Unattended children could
operate the sunroof, which
could result in serious injury.
- The sunroof is made of glass,
subject to break in case of an
accident. Passengers without
the appropriate protection (e.g.
seat belt, CRS, etc.) on may
project out through the broken
glass and may be seriously
injured or even result in death.
- Do not sit on the top of the
vehicle. It may cause injury or
vehicle damage.
NOTICE
- Do not continue to move the sunroof
control lever after the sunroof
is fully opened, closed, or
tilted. Damage to the motor or
system components could occur.
- Make sure the sunroof is closed
fully when leaving your vehicle.
If the sunroof is left open, rain or
snow may wet the interior of the
vehicle. Also, leaving the sunroof
open when the vehicle is unattended
may invite theft.
If your vehicle is equipped with a
sunroof, you can slide or tilt your
sunroof with the sunroof control lever
located on the overhead console.
The ignition switch must be in the ON
position before you can open or close
the sunroof...
■ Front
■ Rear
Front
To open the sunshade, pull the
sunroof sunshade backward.
To close the sunshade, pull the
sunroof sunshade forward.
Rear (if equipped)
To open the rear blind, push the
rear blind OPEN button...
