Hyundai Palisade: Front Door / Front Door Belt Outside Weatherstrip

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Outside Weatherstrip

Repair procedures

Replacement

1.	Pull down the front door window glass to the lowest level by pressing the power window glass switch.

2.	Remove the front door quadrant cover (A).

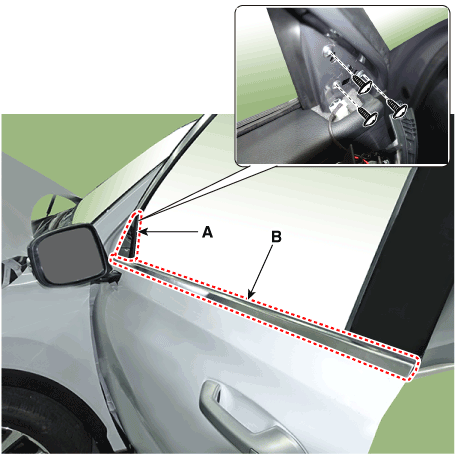

3.	Loosen the mounting screws and remove the front door side garnish (A) and remove the front door belt outside weatherstrip (B).

To install, reverse removal procedure.

•	Replace any damaged clips (or pin-type retainers).
