Hyundai Palisade: Front Seat / Front Seat Assembly

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Assembly

Components and components location
Component Location

Hyundai Palisade. Components and components location

1. Front seat headrest
2. Front seat back cover
 3. Front seat cushion cover

Repair procedures
Replacement
1.

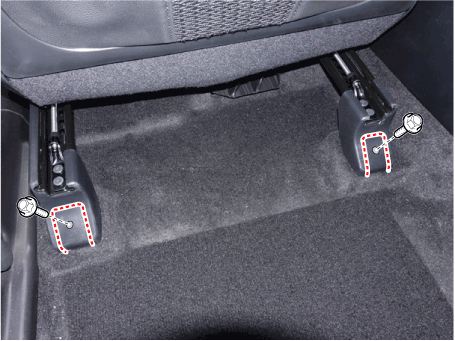

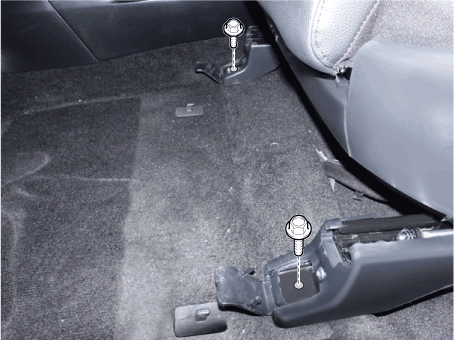

Open the cover and loosen the front seat mounting bolts.
Tightening torque :
44.1 - 58.8 N.m (4.5 - 6.0 kgf.m , 32.5 - 43.4 lb-ft)
[Front]

Hyundai Palisade. Repair procedures

[Rear]

Hyundai Palisade. Repair procedures
2.

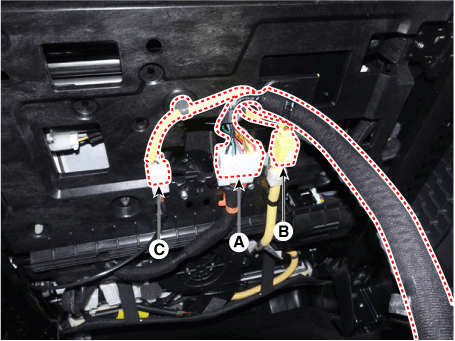

Press the lock pin and separate the main connector (A) , side airbag connector (B) , front seat belt buckle connector (C).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
The installation procedures of seat mounting bolts
•
Push the seat to the rear end of slides and initially tighten the front mounting bolts.
•
Push the seat to the front end of slides and completely tighten the rear mounting bolts.
•
Send the seat to the rear end again to completely tighten the front mounting bolts.
•
Check the seat for smooth movement.
•
For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
