Hyundai Palisade: Safety System of Your Vehicle / Seats

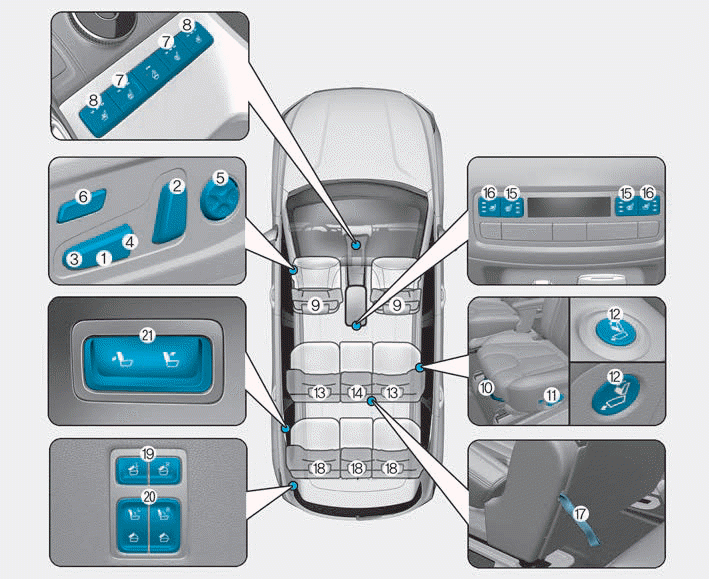

Front seats
(1) Seat sliding forward or rearward
(2) Seatback angle adjustment
(3) Seat cushion angle adjustment
(4) Seat height adjustment
(5) Lumbar support adjustment
(Driver’s seat)*
(6) Seat cushion length adjustment*
(7) Seat warmer*
(8) Air ventilation seat*
(9) Head restraint
2nd row seat
(10) Seat sliding forward or rearward
(11) Seatback angle adjustment /
seat folding
(12) Walk-in switch
(13) Head restraint
(14) Head restraint (8 passengers)
(15) Seat warmer*
(16) Air ventilation seat*
(17) Seat folding strap
3rd row seat
(18) Head restraints
(19) 2nd row seat remote folding switch
(20) 3rd row seat remote folding/
unfolding switch*
(21) Seatback angle adjustment
(for 3rd row seat)
You will find many safety precautions
and recommendations throughout
this section, and throughout this
manual. The safety precautions in
this section are among the most
important...
Adjusting the seats so that you are
sitting in a safe, comfortable position
plays an important role in driver and
passenger safety together with the
seat belts and air bags in an accident
WARNING
Do not use a cushion that
reduces friction between the
seat and the passenger...
Other information:
The Electronic Stability Control
(ESC) system helps to stabilize the
vehicle during cornering maneuvers.
ESC checks where you are steering
and where the vehicle is actually
going. ESC applies braking pressure
to any one of the vehicle's brakes
and intervenes in the engine management
system to assist the driver
with keeping the vehicle on the
intended path...
Troubleshooting
Symptom
Probable cause
Remedy
Play in steering
Loose yoke plug
Retighten
Loose steering gear mounting bolts
Retighten
Loose or worn tie rod end
Retighten or replace as necessary
Steering wheel operation is not smooth (Insufficient power assist)
V-belt slippage
Readjust
Damaged V-belt
Replace
Low fluid level
Replenish
Air in the fluid
Bleed air
Twisted or damaged hoses
Correct the routing or replace
Insufficient oil pump pressure
Repair or replace the oil pump
Sticky flow control valve
Replace
Excessive internal oil pump leakage
Replace the damaged parts
Excessive oil leaks from rack and pinion in gear box
Replace the damaged parts
Distorted or damaged gear box or valve body seals
Replace
Steering wheel does not return properly
Excessive turning resistance of tie rod end
Replace
Yoke plug excessively tight
Adjust
Tie rod and/or ball joint cannot turn smoothly
Replace
Loose mounting of gear box mounting bracket Worn steering shaft joint and/or
Retighten
Worn steering shaft joint and / or body grommet
Correct or replace
Distorted rack
Replace
Damaged pinion bearing
Replace
Twisted or damaged hoses
Reposition or replace
Damaged oil pressure control valve
Replace
Damaged oil pump input shaft bearing
Replace
Noise
Hissing Noise in Steering Gear
There is some noise with all power steering systems...
