Hyundai Palisade: Lighting System / Luggage Room Lamp

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Lighting System / Luggage Room Lamp

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

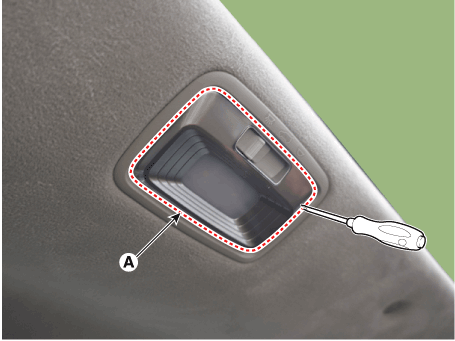

2.	Remove the luggage room lamp lens with a flat-tip screwdriver.

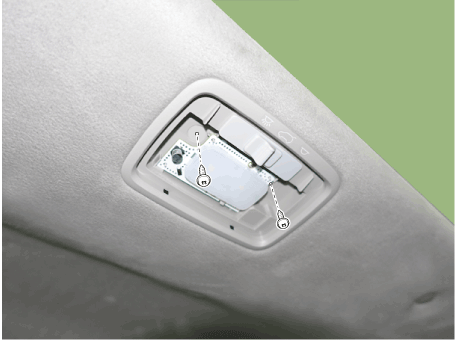

3.	Remove the luggage room lamp bulb.

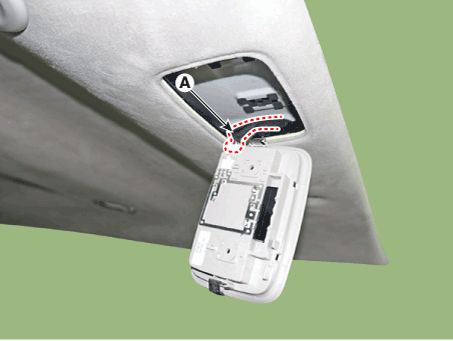

4.	Remove the luggage room lamp assembly after disconnecting the connector (A).

Installation

1.	Install the luggage room lamp assembly after connecting the lamp connector.
