Hyundai Palisade: Power Windows / Power window lock switch

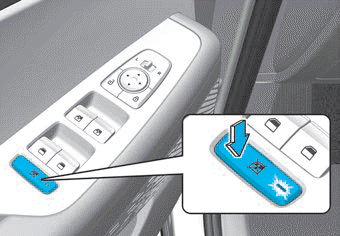

The driver can disable the power
window switches on the rear passenger
doors by pressing the power window
lock switch.
When the power window lock switch
is pressed:
- The rear passenger control will not
be able to operate the rear passenger
power window
- Note that the front passenger control
is still able to operate the front
passenger window, and that the
driver master control can still operate
all the power windows.
WARNING
Do not allow children to play
with the power windows. Keep
the driver's door power window
lock switch in the LOCK position.
Serious injury or death can
result from unintentional window
operation by a child.
NOTICE
- To prevent possible damage to
the power window system, do
not open or close two windows
or more at the same time. This
will also ensure the longevity of
the fuse.
- Never try to operate the main
switch on the driver's door and
the individual door window
switch in opposite directions at
the same time. If this is done, the
window will stop and cannot be
opened or closed.
If a window senses any obstacle while
it is closing automatically, it will stop
and lower approximately 12 inches (30
cm) to allow the object to be cleared...
If your vehicle is equipped with a
sunroof, you can slide or tilt your
sunroof with the sunroof control lever
located on the overhead console.
The ignition switch must be in the ON
position before you can open or close
the sunroof...
