Hyundai Palisade: Front Bumper / Radiator Grill

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Front Bumper / Radiator Grill

Components and components location
Component Location

Hyundai Palisade. Components and components location

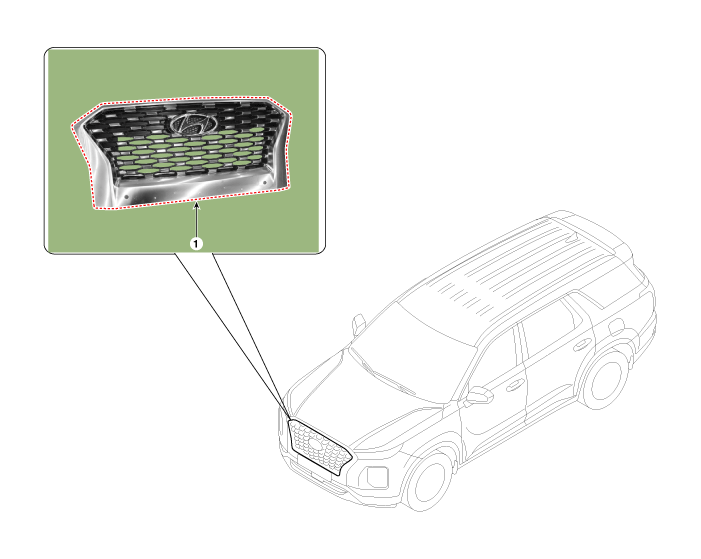

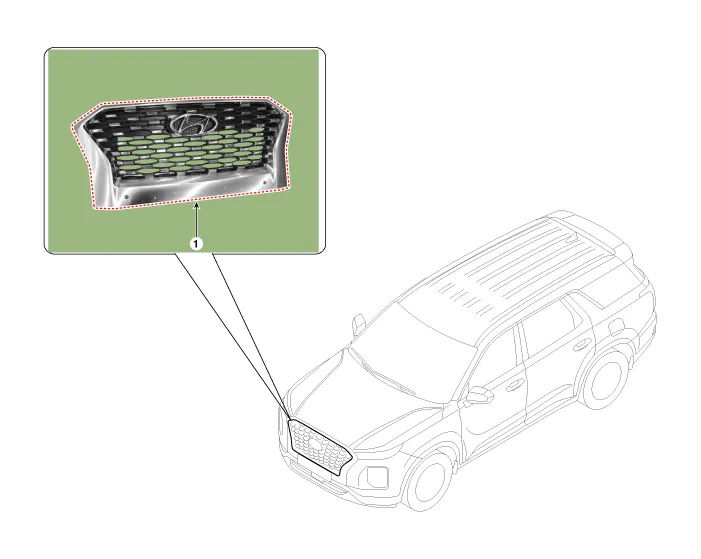

1. Radiator grill

Repair procedures
Replacement
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front bumper cover.
(Refer to Front Bumper - "Front Bumper Cover")
2.
Remove the front bumper energy absorber (A).

Hyundai Palisade. Repair procedures
3.

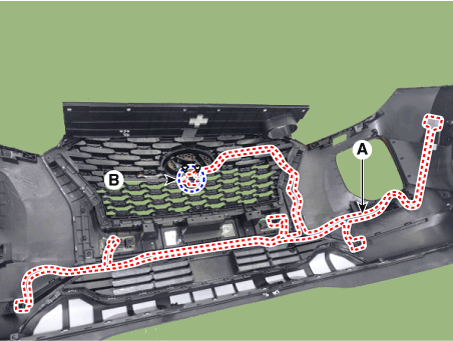

Remove the radiator grill wiring (A) and loosen the mounting screws and remove the braket (B).

Hyundai Palisade. Repair procedures
4.
Loosen the mounting screws and remove the front bumper upper cover (A).

Hyundai Palisade. Repair procedures
5.

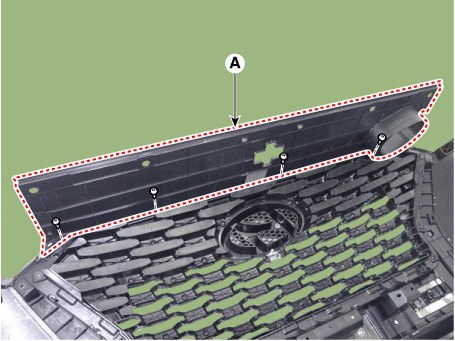

Loosen the mounting screws and remove the radiator grill (A).

Hyundai Palisade. Repair procedures
6.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).

    Front Bumper Cover

    C..

    Front Bumper Beam Assembly

    C..
