Hyundai Palisade: Rear Door / Rear Door Module

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Module

Components and components location

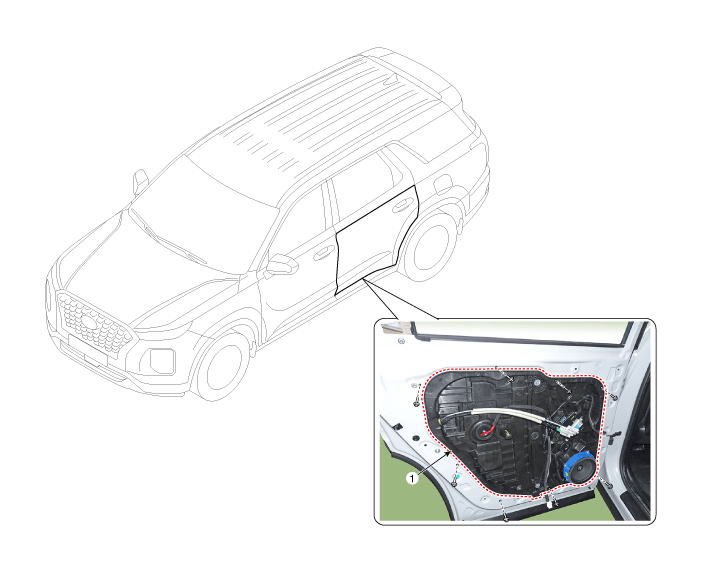

Component Location

Hyundai Palisade. Components and components location

1. Rear door module


Repair procedures
Replacement
1.
Remove the rear door window glass.
(Refer to Rear Door - "Rear Door Window Glass")
2.
Remove the rear door outside handle.
(Refer to Rear Door - "Rear Door Outside Handle")
3.

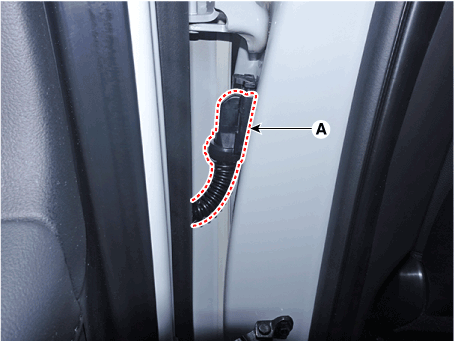

Press the lock pin and separate the rear door main connector (A).

Hyundai Palisade. Repair procedures

4.

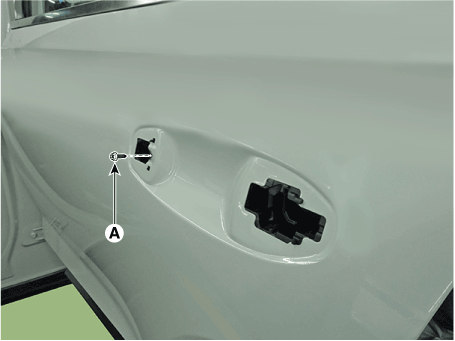

Loosen the rear door out side handle base mounting screw (A).

Hyundai Palisade. Repair procedures

5.

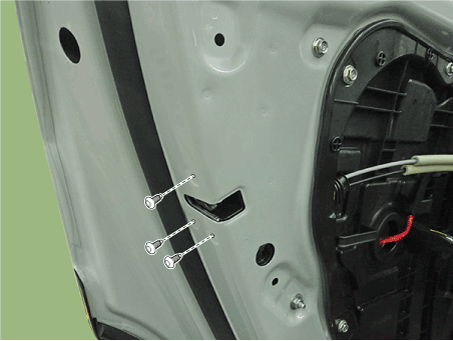

Loosen the rear door latch mounting screw.
Tightening torque :
7.8 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

Hyundai Palisade. Repair procedures

6.

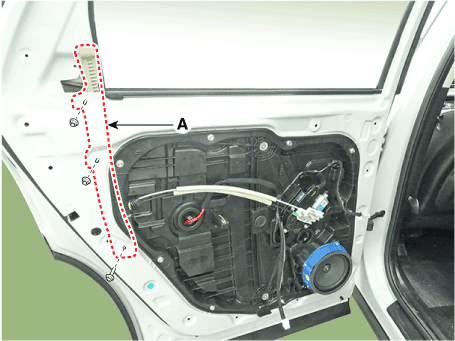

Remove the rear door channel (A).

Hyundai Palisade. Repair procedures

7.

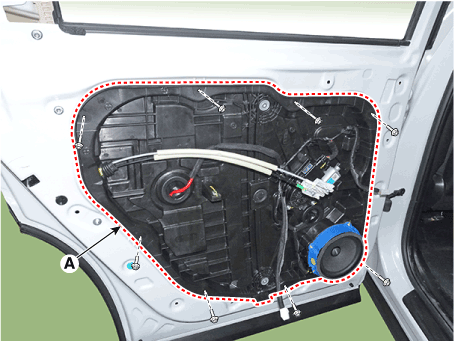

Loosen mounting bolts and remove the rear door module (A).
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Hyundai Palisade. Repair procedures

8.
Remove the rear door main wiring (A).
9.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
Make sure connectors are connected properly and each rod is connected securely.
Make sure the door locks / unlocks and opens / closes properly.
