Hyundai Palisade: Keyless Entry And Burglar Alarm / Repair procedures

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Keyless Entry And Burglar Alarm / Repair procedures

Inspection
Front Door Lock Module Inspection
1.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
2.
Remove the front door module.
(Refer to Body - "Front Door Module")
3.

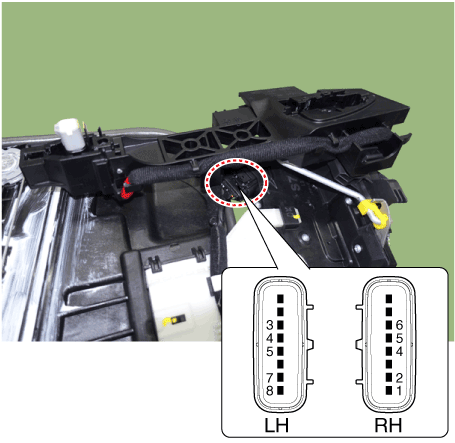

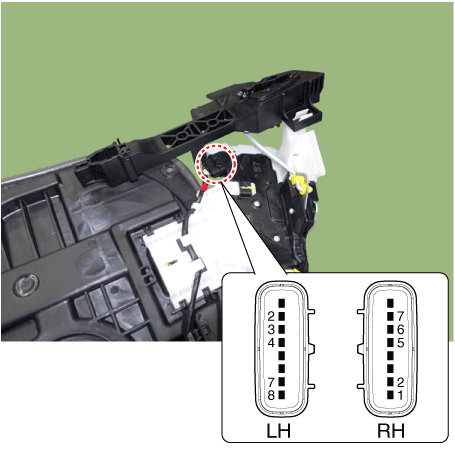

Disconnect the connectors from the actuator.

Hyundai Palisade. Repair procedures
4.

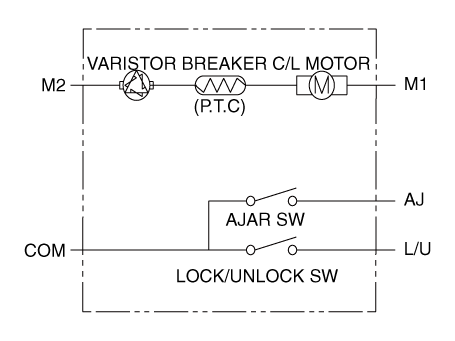

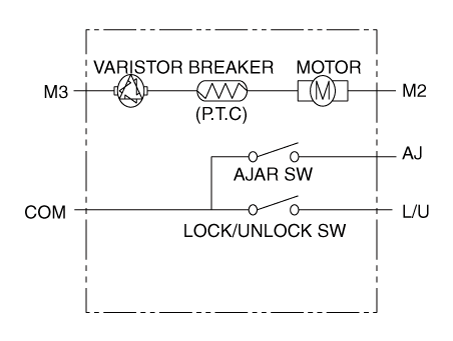

Check actuator operation by connecting power and ground according to the table.
Pin
Driver
Panssenger
1
 -
 M2
2
 -
 M3
3
 COM
 -
4
 Lock/Unlock switch
 AJAR
5
 AJAR
 Lock/Unlock switch
6
 -
 COM
7
 M3
 -
8
 M2
 -

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
Rear Door Lock Module Inspection
1.
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
2.
Remove the rear door module.
(Refer to Body - "Rear Door Module")
3.
Disconnect the connectors from the actuator.

Hyundai Palisade. Repair procedures
4.

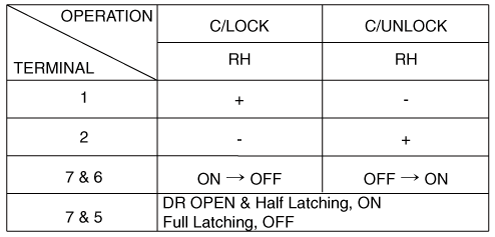

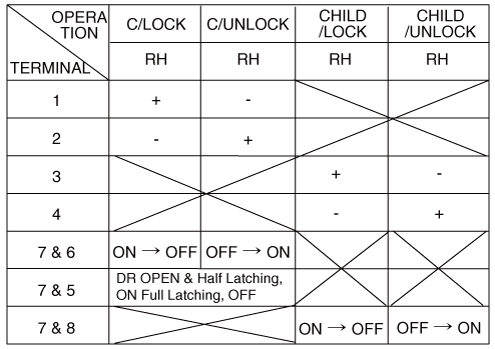

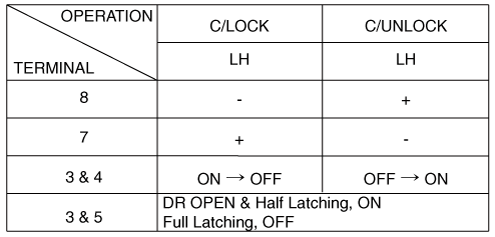

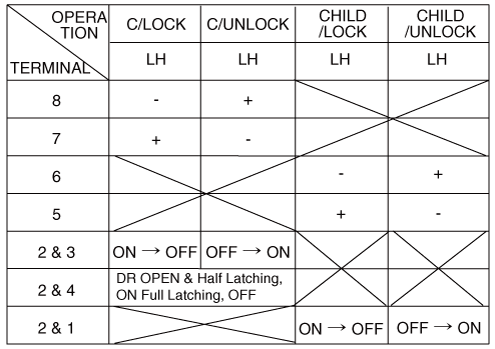

Check actuator operation by connecting power and ground according to the table.
Pin
Driver
Panssenger
Central Lock
Power Child Lock
Central Lock
Power Child Lock
1
 -
 Power child switch
 M1
 M2
2
 COM
 COM
 M2
 M3
3
 Lock/Unlock switch
 Lock/Unlock switch
 -
 M1
4
 AJAR
 AJAR
 -
 M4
5
 -
 M4
 AJAR
 AJAR
6
 -
 M1
 Lock/Unlock switch
 Lock/Unlock switch
7
 M2
 M3
 COM
 COM
8
 M1
 M2
 -
 Power child switch

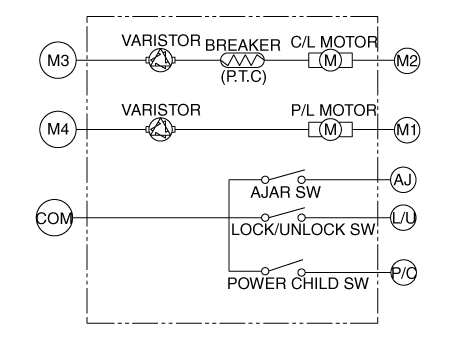

[Central Lock]

Hyundai Palisade. Repair procedures

[Power Child Lock]

Hyundai Palisade. Repair procedures

[Central Lock]

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

[Power Child Lock]

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
Tailgate Lock Module Inspection
1.
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
2.

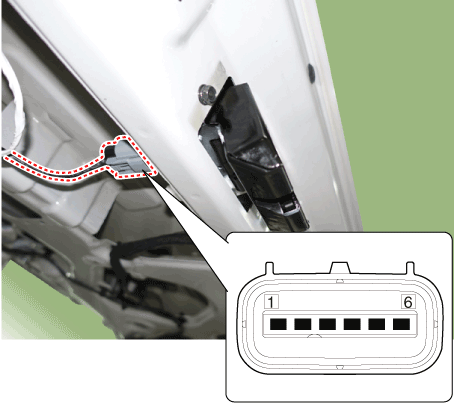

Disconnect the 4P connector from the actuator.

Hyundai Palisade. Repair procedures
3.

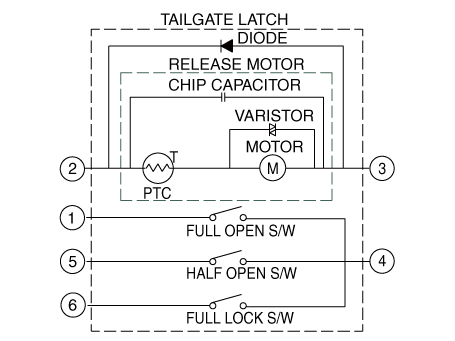

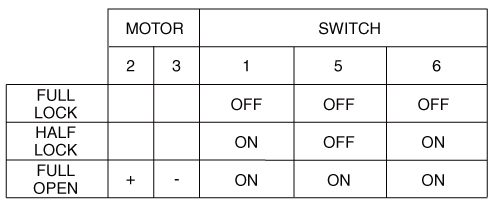

Check actuator operation by connecting power and ground according to the table.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
Hood Switch
1.

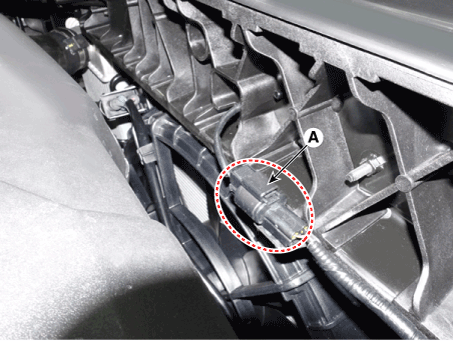

Disconnect the connector and bolts from the hood switch.

Hyundai Palisade. Repair procedures
2.

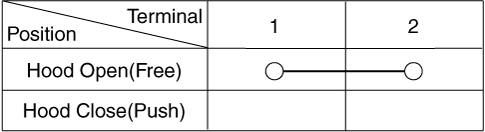

Check for continuity between the terminals and ground according to the table.

Hyundai Palisade. Repair procedures
