Hyundai Palisade: Where Are the Air Bags? / Side air bags

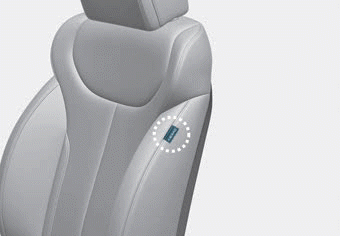

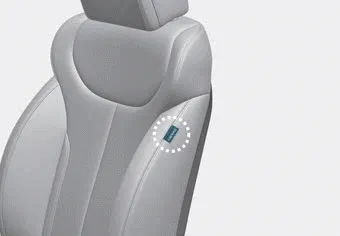

Your vehicle is equipped with a side
air bag in each front seat. The purpose
of the air bag is to provide the
vehicle's driver and the front passenger
with additional protection than
that offered by the seat belt alone.

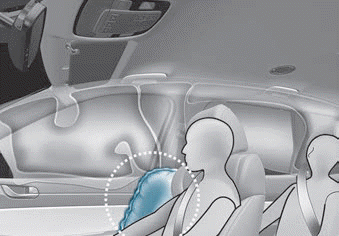

The side air bags are designed to
deploy during certain side impact
collisions, depending on the crash
severity.
The side and curtain air bags on
both sides of the vehicle may deploy
if a rollover or possible rollover is
detected.
The side air bags are not designed to
deploy in all side impact or rollover
situations.
WARNING
To reduce the risk of serious
injury or death from an inflating
side air bag, take the following
precautions:
- Seat belts must be worn at all
times to help keep occupants
positioned properly.
- Do not allow passengers to
lean their heads or bodies
onto doors, put their arms on
the doors, stretch their arms
out of the window, or place
objects between the doors
and seats.
- Hold the steering wheel at the
9 o'clock and 3 o'clock positions,
to minimize the risk of
injuries to your hands and
arms.
- Do not use any accessory
seat covers.This could reduce
or prevent the effectiveness
of the system.
- Do not place any objects over
the air bag or between the air
bag and yourself. Also, do not
attach any objects around the
area the air bag inflates such
as the door, side door glass,
front and rear pillar.
- Do not place any objects
between the door and the
seat. They may become dangerous
projectiles if the side
air bag inflates.
- Do not install any accessories
on the side or near the side air
bags.
- Do not put any objects
between the side airbag label
and seat cushion. It could
cause harm if the vehicle is in
a crash severe enough to
cause the air bags to deploy.
- Do not cause impact to the
doors when the ignition
switch button is in the ON
position as this may cause the
side air bags to inflate.
- If the seat or seat cover is
damaged, have the vehicle
checked and repaired by an
authorized HYUNDAI dealer.
