Hyundai Palisade: Sunroof / Sunroof Sunshade

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Sunshade

Repair procedures
Replacement
1.
Remove the roof trim assembly.
(Refer to Roof Trim - "Roof Trim Assembly")
2.

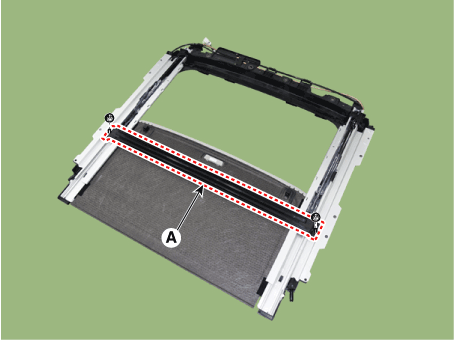

Loosen the mounting nuts and remove the drain channel (A).
Hyundai Palisade. Repair procedures
Be careful to remove and install because the torque value is weak.

Hyundai Palisade. Repair procedures

3.

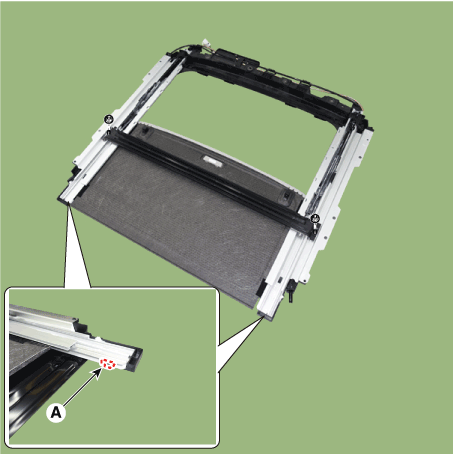

Using a flat-tip screwdriver and remove the sunshade shoe clip (A).

Hyundai Palisade. Repair procedures

4.

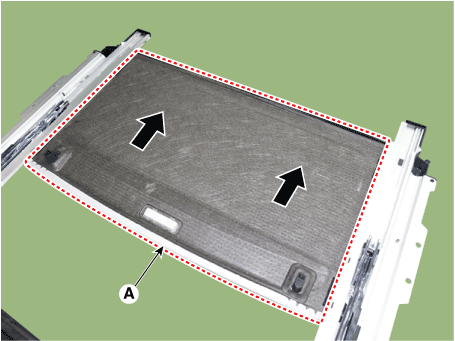

Remove the sunshade (A).

Hyundai Palisade. Repair procedures

5.
Install in the reverse order of removal.
