Hyundai Palisade. Surround View Monitoring

The Surround View Monitoring system can assist in parking by allowing the driver to see around the vehicle.

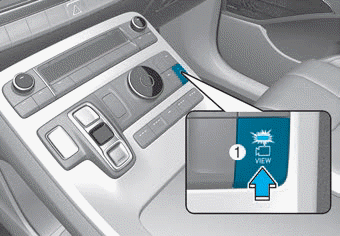

Push the button (1, indicator ON) to operate the system. To cancel the system, push the button again (1, indicator OFF).

The system is activated when:

  • The engine is ON
  • The shift button is in D (Drive), N (Neutral) or R (Reverse)
  • Vehicle speed is under 10 mph (15 km/h)

The system is deactivated when:

  • You press the button (1) again
  • Vehicle speed is over 10 mph (15 km/h)

Information

  • When vehicle speed is over 10 mph (15 km/h), the system will turn off. The system will not automatically turn on again, even though vehicle speed gets below 10 mph (15 km/h). Push the button (1, indicator ON) again, to turn on the system.
  • When the vehicle is backing up, the system will turn ON regardless of vehicle speed or button status. However, if vehicle speed is over 10 mph (15 km/h) when driving forward, the SVM system will turn off.
  • A warning appears on the system when: - The liftgate is opened - The driver's door is opened - The passenger's door is opened - The outer side view mirror is folded
  • If the system is not operating normally, the system should be checked by an authorized HYUNDAI dealer.

CAUTION

Hyundai Palisade. Surround View Monitoring

Surround View Monitor system only serves to assist the driver in parking. ALWAYS look around your vehicle to make sure there are no objects or obstacles before moving the vehicle.

NOTICE

Always keep the camera lens clean. The camera may not work normally if the lens is covered with foreign material.
