Sunroof Opening and Closing

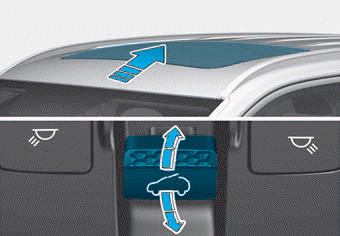

Hyundai Palisade. Sunroof Opening, Closing, Sliding

To open:

Press the sunroof control lever backward to the first detent position. Release the switch when you want the sunroof to stop.

To close:

Press the sunroof control lever forward to the first detent position. Release the switch when you want the sunroof to stop.

Sliding the Sunroof

Pressing the sunroof control lever backward or forward momentarily to the second detent position completely opens or closes the sunroof even when the switch is released. To stop the sunroof at the desired position while the sunroof is in operation, press the sunroof control lever backward or forward and release the switch.

Sunshade

■ Front ■ Rear Front To open the sunshade, pull the sunroof sunshade backward. To close the sunshade, pull the sunroof sunshade forward. Rear (if equipped) To open the rear blind, push the rear blind OPEN button...

Tilting the Sunroof (Front)

Tilt the sunroof open: Push the sunroof control lever upward until the sunroof moves to the desired position. To close the sunroof: Push the sunroof control lever forward until the sunroof closes...
