Hyundai Palisade: Tailgate / Tail Gate Back Panel

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Tailgate / Tail Gate Back Panel

Components and components location
Component Location

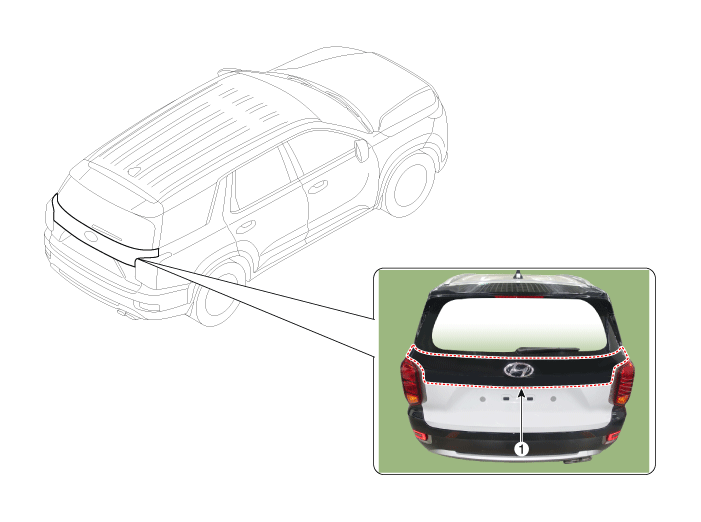

Hyundai Palisade. Components and components location

1. Tailgate back panel


Repair procedures
Replacement
Hyundai Palisade. Repair procedures
Wear gloves to protect hands from injury.
Take care not to scratch the body surface.
1.
Remove the tailgate lower trim.
(Refer to tailgate - "Tailgate Trim")
2.

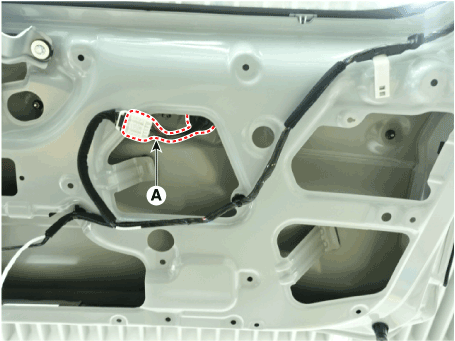

Press the lock pin and separate the rear view camera connector (A).

Hyundai Palisade. Repair procedures

3.

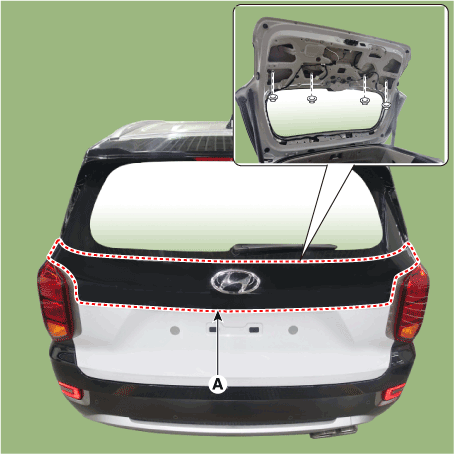

Loosen the mounting nuts and remove the tailgate back panel (A).

Hyundai Palisade. Repair procedures

4.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
Make sure the tailgate locks and opens properly and locks securely.
Replace any damaged clips.
