Hyundai Palisade: Steering wheel / Tilt Steering / Telescopic Steering, Horn

Hyundai Palisade (LX2) 2020-2025 Owner's Manual / Convenient Features of Your Vehicle / Steering wheel / Tilt Steering / Telescopic Steering, Horn

Tilt Steering / Telescopic Steering

When adjusting the steering wheel to a comfortable position, adjust the steering wheel so that it points toward your chest, not toward your face. Make sure you can see the instrument cluster warning lights and gauges. After adjusting, push the steering wheel both up and down to be certain it is locked in position. Always adjust the position of the steering wheel before driving.

WARNING

NEVER adjust the steering wheel while driving. This may cause loss of vehicle control resulting in an accident.

NOTICE

While adjusting the steering wheel height, please do not push or pull it hard since the fixture can be damaged.

Hyundai Palisade. Steering, Horn

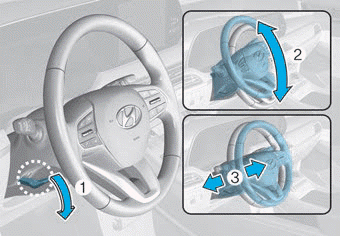

To adjust the steering wheel angle and height:

1. Pull down the lock-release lever (1).

2. Adjust the steering wheel to the desired angle (2) and distance forward/ back (3).

3. Pull up the lock-release lever to lock the steering wheel in place.

Information

Sometimes the lock release lever may not engage completely. This may occur when the gears of the locking mechanism do not completely mesh. If this occurs, pull down on the lock-release lever, readjust the steering wheel again, and then pull back up on the release lever to lock the steering wheel in place.

Horn

Hyundai Palisade. Steering, Horn

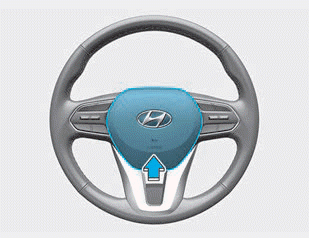

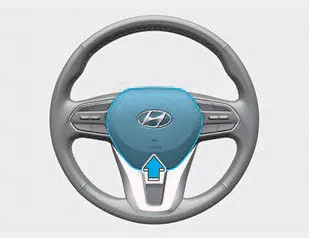

To sound the horn, press the area indicated by the horn symbol on your steering wheel (see illustration). The horn will operate only when this area is pressed.

NOTICE

Do not strike the horn severely to operate it, or hit it with your fist. Do not press on the horn with a sharp-pointed object.

    Steering wheel

    Electric Power Steering (EPS) The system assists you with steering the vehicle. If the vehicle is turned off or if the power steering system becomes inoperative, you may still steer the vehicle, but it will require increased steering effort...

    Heated Steering Wheel

    When the ignition switch is in the ON position or when the engine is running, press the heated steering wheel button to warm the steering wheel. The indicator on the button will illuminate...
