Hyundai Palisade: Engine Control System / Camshaft Position Sensor (CMPS)
Description and operation

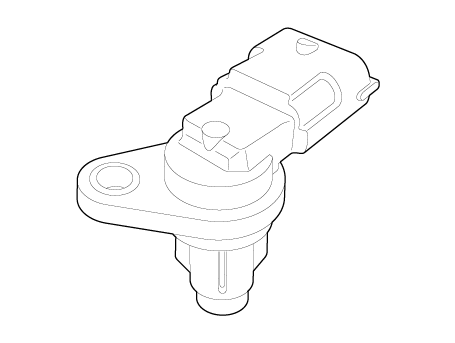

Camshaft Position Sensor (CMPS) is a hall sensor, which detects the camshaft
position by using a hall element.
It is related with Crankshaft Position Sensor (CKPS) and detects the piston
position of each cylinder which cannot be detected by the CKPS.
The two CMPS are installed on engine head cover of bank 1 and 2 (intake, exhaust)
respectively and use a target wheel installed on the camshaft. The Camshaft
Position Sensor is a hall-effect type sensor. As the target wheel passes the
Hall sensor, the magnetic field changes in the sensor. The sensor then switches
a signal which creates a square wave.
![Hyundai Palisade. Description and operation](images/camshaft_position_sensor_cmps_-519/390/hyundai_palisade__description_and_operation_943.gif)
Specifications
Item
|
Specification
|
Output Voltage (V)
|
High : 4.2 or more
|
Low : 0.5 or below
|
Air Gap (mm)
|
0.5 - 1.5
|
pin
|
3
|

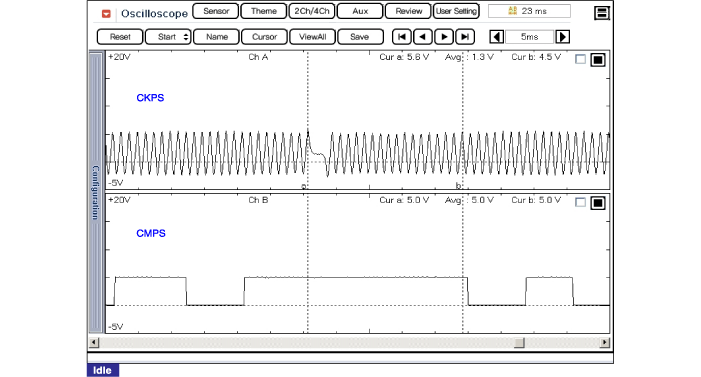

Troubleshooting
![Hyundai Palisade. Troubleshooting](images/camshaft_position_sensor_cmps_-519/390/hyundai_palisade__troubleshooting_944.gif)

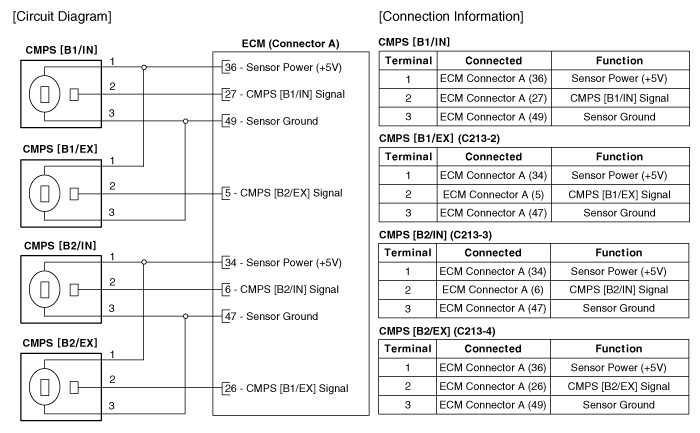

Schematic diagrams
![Hyundai Palisade. Schematic diagrams](images/camshaft_position_sensor_cmps_-519/390/hyundai_palisade__schematic_diagrams_945.gif)

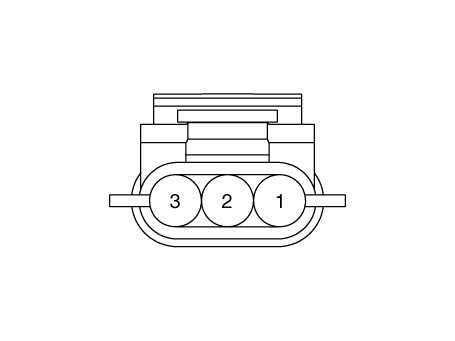

Harness Connector
![Hyundai Palisade. Schematic diagrams](images/camshaft_position_sensor_cmps_-519/390/hyundai_palisade__schematic_diagrams_946.gif)
