Hyundai Palisade: Rear Suspension System / Components and components location

Hyundai Palisade (LX2) 2020-2025 Service Manual / Suspension System / Rear Suspension System / Components and components location

Components

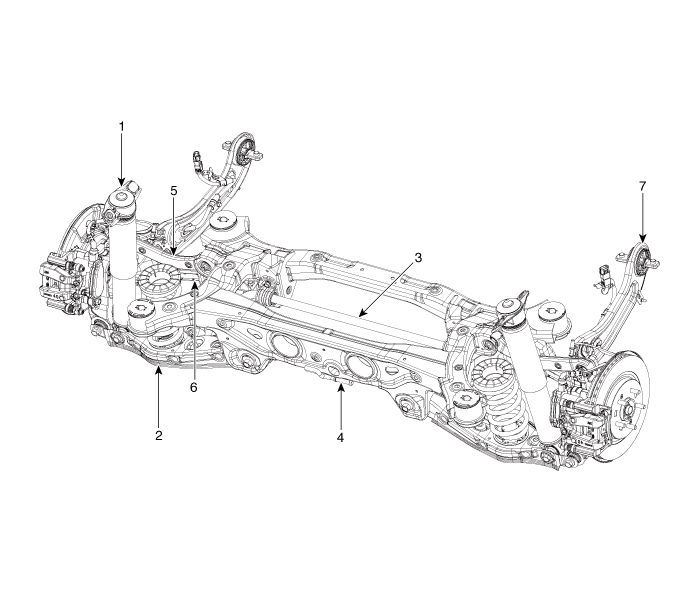

2WD

Hyundai Palisade. Components and components location

1. Rear shock absorber
2. Rear lower arm
3. Rear stabilizer bar
4. Rear cross member
5. Rear upper arm
6. Rear assist arm
7. Trailing arm

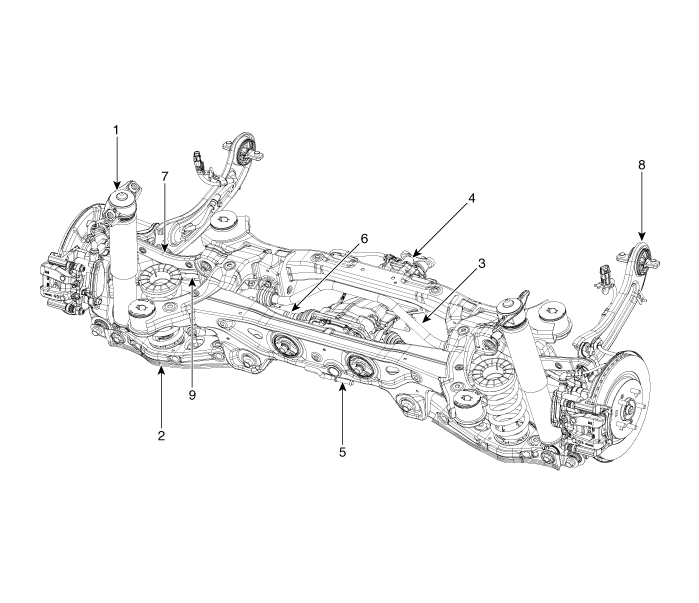

4WD

Hyundai Palisade. Components and components location

1. Rear shock absorber
2. Rear lower arm
3. Rear stabilizer bar
4. Rear differential carrier
5. Rear cross member
6. Rear driveshaft
7. Rear upper arm
8. Trailing arm
9. Rear assist arm
