Hyundai Palisade: Rear Suspension System / Rear Shock Absorber

Hyundai Palisade (LX2) 2020-2024 Service Manual / Suspension System / Rear Suspension System / Rear Shock Absorber

Components and components location

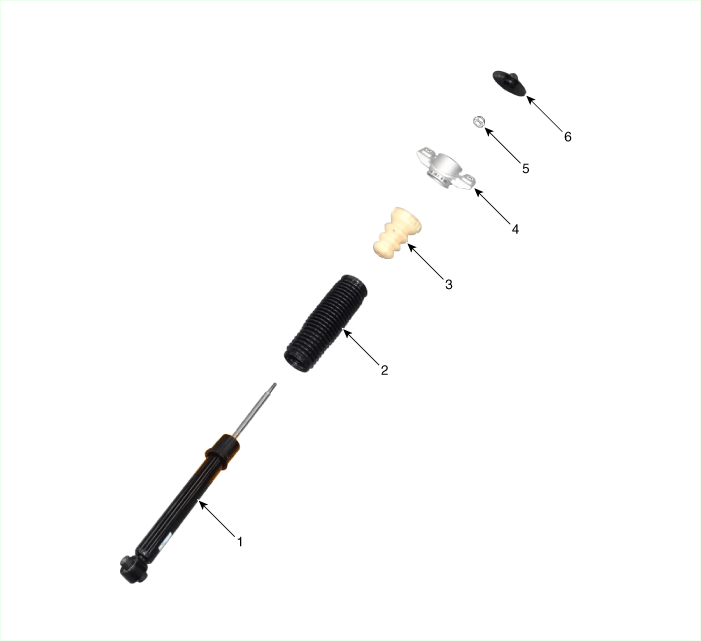

Components

Hyundai Palisade. Components and components location

1. Rear shock absorber
2. Dust cover
3. Bumper rubber
 4. Insulator assembly
5. Lock nut
6. Insulator cap

Repair procedures
Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.

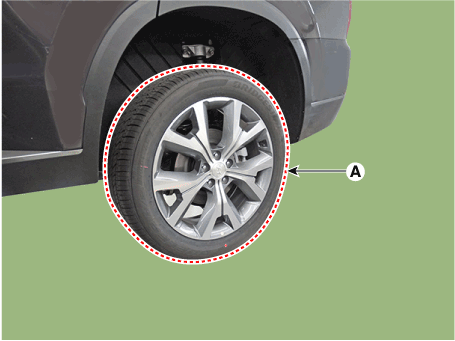

Remove the rear wheel and tire (A) from rear hub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
Hyundai Palisade. Repair procedures
•
Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

Hyundai Palisade. Repair procedures
3.

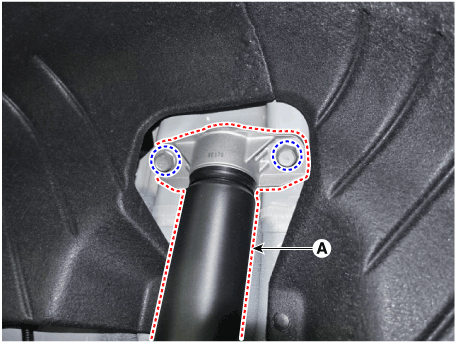

Remove the rear shock absorber (A) from the body by loosening the bolt.
Tightening torque :
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Hyundai Palisade. Repair procedures
4.

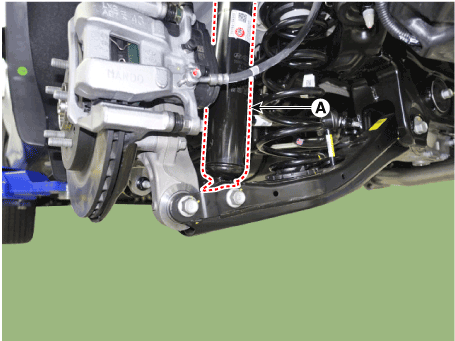

Loosen the bolt & nut and then remove the rear shock absorber (A) from the lower arm.
Tightening torque :
137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

Hyundai Palisade. Repair procedures
Disassembly
1.

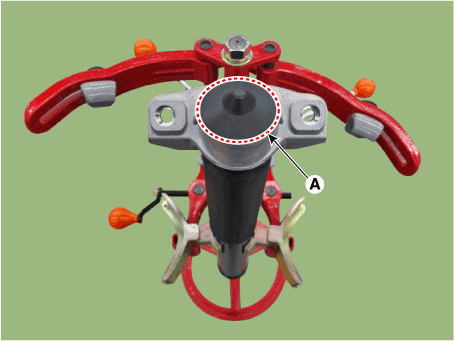

Remove the lock nut cover (A).

Hyundai Palisade. Repair procedures
2.

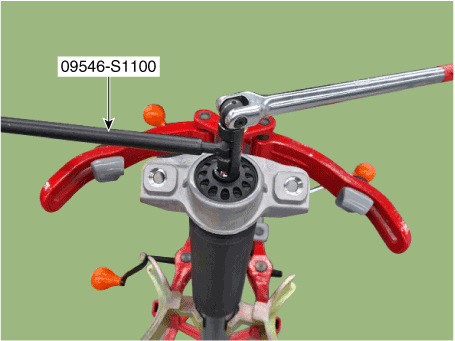

Using the special tool (09546-S1100), install the self locking nut.

Hyundai Palisade. Repair procedures
3.

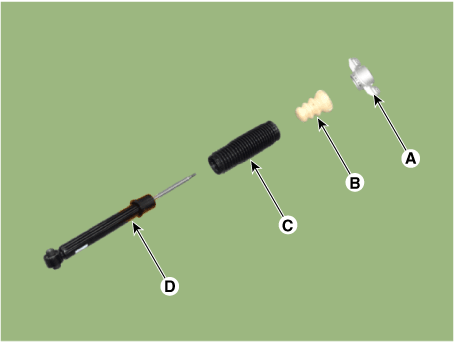

Separate the Insulator assembly (A), bumper rubber (B), dust cover (C), shock absorber (D).

Hyundai Palisade. Repair procedures
Inspection
1.
Check the rubber parts for damage or deterioration.
2.
Check the shock absorber for abnormal resistance or unusual sounds.

Hyundai Palisade. Repair procedures

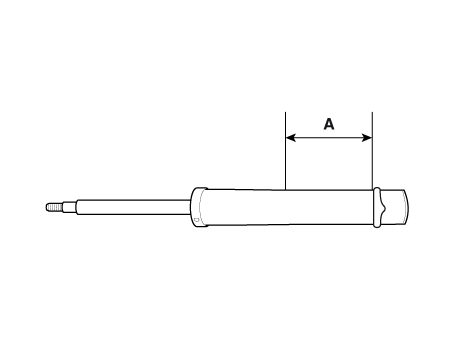

Disposal
1.

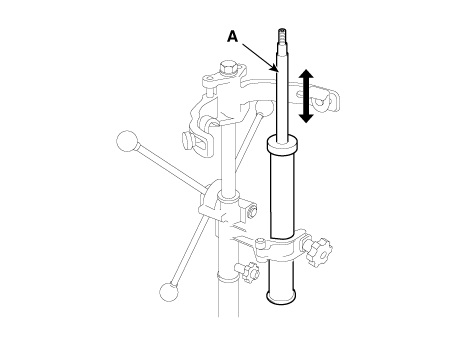

Fully extend the shock absorber rod.
2.
Drill a hole to remove gas from the cylinder.

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
•
The gas corning out is harmless, but be careful of chips that may fly when drilling. Be sure to use face shield and safety goggles.
Reassembly
1.
To reassembly, reverse the disassembly procedure.
2.
Using SST(09546-3X100), install the lock nut.
Hyundai Palisade. Repair procedures
•
Do not reuse the self locking nut.
Tightening torque :
29.4 N.m (3.0 kgf.m, 21.7 lb-ft)

Hyundai Palisade. Repair procedures
3.
Install the lock nut cover (A).

Hyundai Palisade. Repair procedures
Installation
1.
Install in the reverse order of removal.
