Hyundai Palisade: Front Seat Belt / Components and components location
Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Components and components location

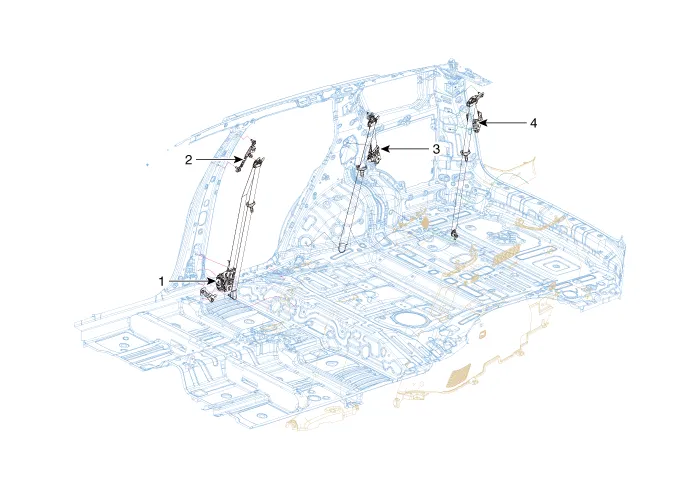

| Components |
| 1. Front seat belt retractor 2. Height adjust |
3. Second-row seat belt retractor 4. Third-row seat belt retractor |
Front Seat Belt Pretensioner
Components and components location
Component Location
1. Front seat belt pretensioner
Repair procedures
Replacement
•
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components...
