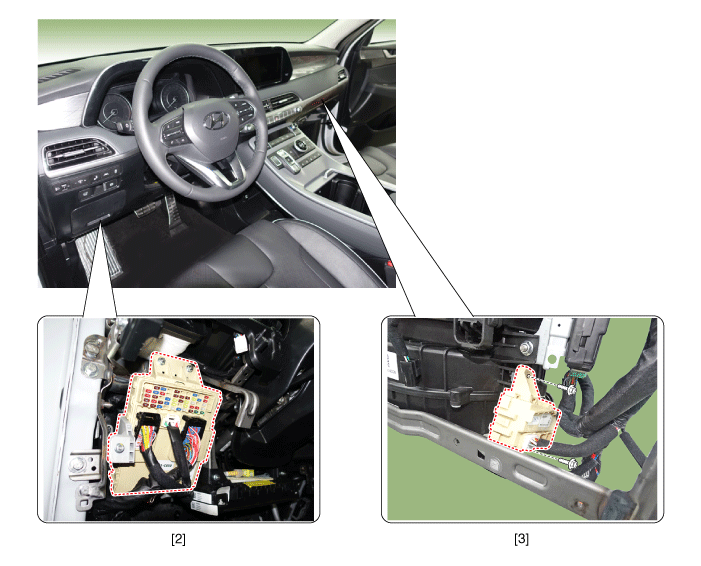

Hyundai Palisade: Fuses And Relays / Components and components location

Fuses And Relays

..

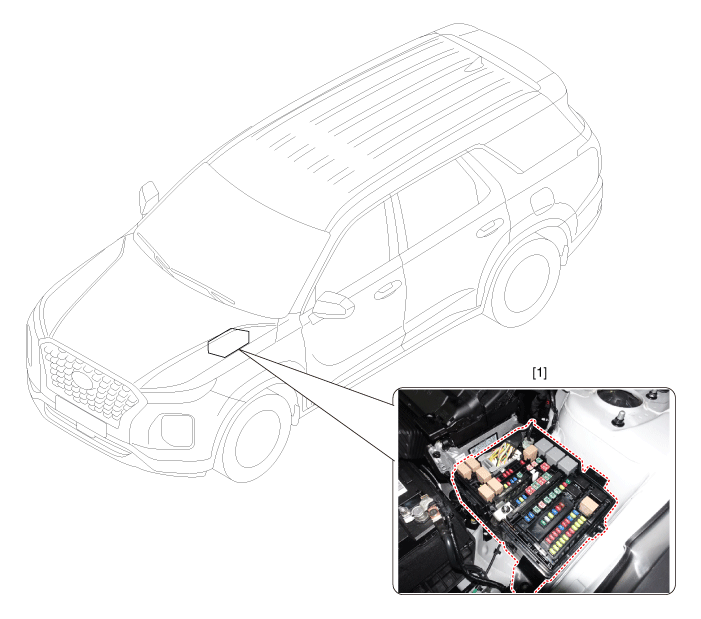

Relay Box (Engine Compartment)

Repair procedures Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay box...
