Hyundai Palisade: Audio / Components and components location

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Audio / Components and components location

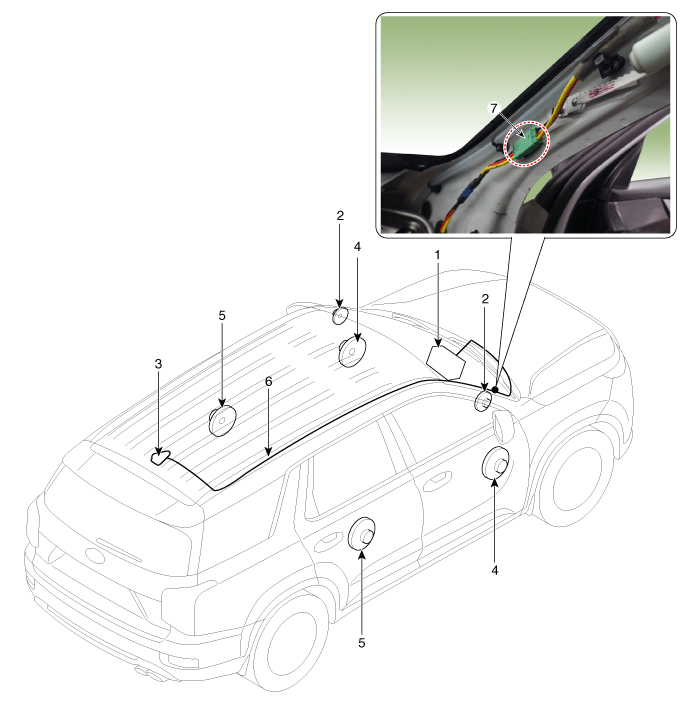

Component Location

Hyundai Palisade. Components and components location

1. Audio unit
2. Tweeter speaker
3. Roof antenna (Radio)
4. Front door speaker
5. Rear door speaker
6. Antenna feeder cable
7. Antenna cable connector

    Specifications

    Specifications Audio Item Specification Model Display Audio 2.0 Power supply DC 14...

    Audio Unit

    Components and components location Components Connector Pin Information No Connector A Connector B 1 Rear left speaker (+) - 2 Rear left speaker (-) Mic (+) 3 - - 4 - - 5 - Antenna power 6 Camera _Power Illumination (+) 7 Camera_ Video MM CAN High 8 - - 9 - - 10 - Battery (+) 11 DTC Battery (+) 12 Steering wheel remote Ground 13 Front left speaker (+) Ground 14 Front left speaker (-) - 15 Front right speaker (-) Mic (+) 16 Front right speaker (+) - 17 - - 18 - - 19 - Illumination (-) 20 Camera power_Ground MM CAN Low 21 Camera video_Ground - 22 - ACC 23 - - 24 - - 25 - - 26 Steering wheel remote ground - 27 Rear right speaker (-) - 28 Rear right speaker (+) - 29 - - 30 - - 31 - - 32 - Ignition 33 Camera shield _Ground - 34 - - 35 - - 36 - 37 - 38 - 39 Speed Repair procedures Removal 1...
