Hyundai Palisade: Audio / Audio Unit
Components and components location

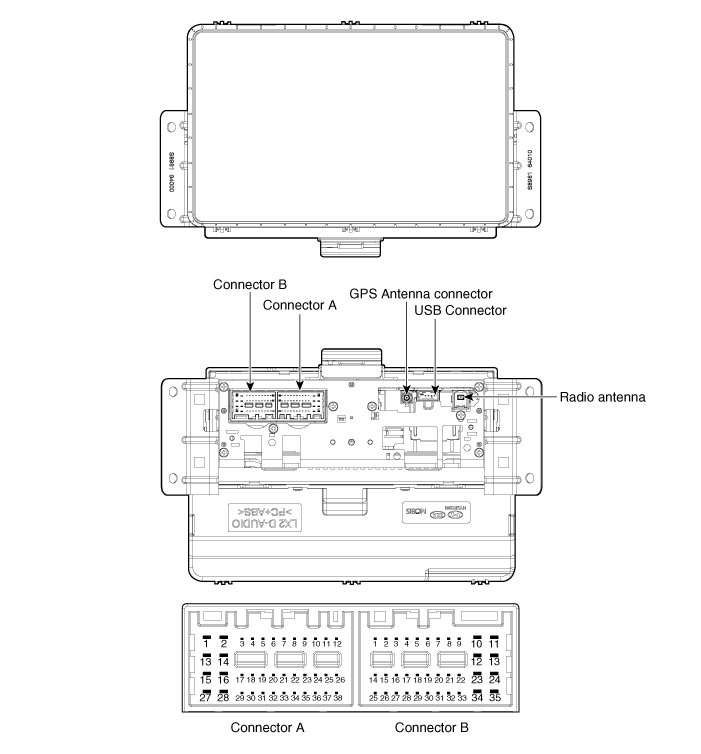

| Components |

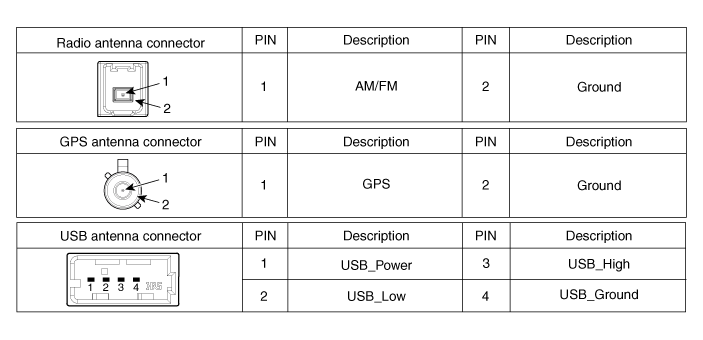

Connector Pin Information
|
No |
Connector A |
Connector B |
|
1 |
Rear left speaker (+) |
- |
|
2 |
Rear left speaker (-) |
Mic (+) |
|
3 |
- |
- |
|
4 |
- |
- |
|
5 |
- |
Antenna power |
|
6 |
Camera _Power |
Illumination (+) |
|
7 |
Camera_ Video |
MM CAN High |
|
8 |
- |
- |
|
9 |
- |
- |
|
10 |
- |
Battery (+) |
|
11 |
DTC |
Battery (+) |
|
12 |
Steering wheel remote |
Ground |
|
13 |
Front left speaker (+) |
Ground |
|
14 |
Front left speaker (-) |
- |
|
15 |
Front right speaker (-) |
Mic (+) |
|
16 |
Front right speaker (+) |
- |
|
17 |
- |
- |
|
18 |
- |
- |
|
19 |
- |
Illumination (-) |
|
20 |
Camera power_Ground |
MM CAN Low |
|
21 |
Camera video_Ground |
- |
|
22 |
- |
ACC |
|
23 |
- |
- |
|
24 |
- |
- |
|
25 |
- |
- |
|
26 |
Steering wheel remote ground |
- |
|
27 |
Rear right speaker (-) |
- |
|
28 |
Rear right speaker (+) |
- |
|
29 |
- |
- |
|
30 |
- |
- |
|
31 |
- |
- |
|
32 |
- |
Ignition |
|
33 |
Camera shield _Ground |
- |
|
34 |
- |
- |
|
35 |
- |
- |
|
36 |
- |
|
|
37 |
- |
|
|
38 |
- |
|
|
39 |
Speed |
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal
|
| 2. |
Remove the center fascia panel.
(Refer to Body - "Center Fascia Panel")
|
| 3. |

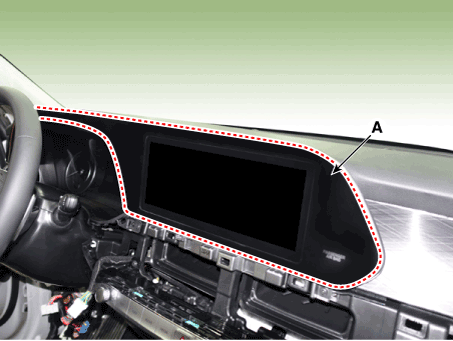

Using a flat-head screwdriver, remove the monitor cover (A).
|
| 4. |

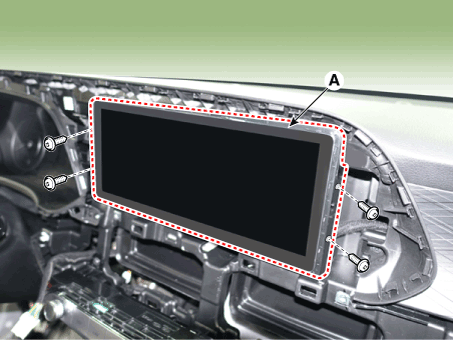

Loosen mounting screws and then remove the audio assembly (A).
|
| 5. |

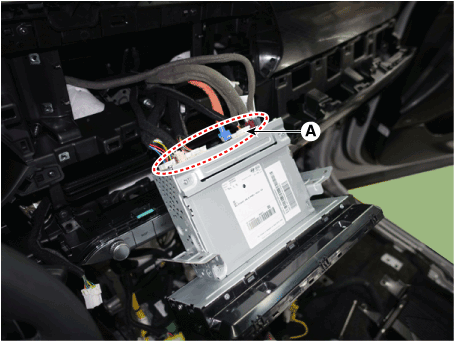

Remove the audio head unit after disconnecting connectors (A).
|
| Installation |
| 1. |
Connect the audio unit connectors..
|
| 2. |
Install the audio head unit.
|
| 3. |
Install the monitor cover.
|
| 4. |
Install the center fascia panel.
|
| 5. |
Connect the negative (-) battery terminal.
|
Components and components location
Component Location
1. Audio unit
2. Tweeter speaker
3. Roof antenna (Radio)
4. Front door speaker
5. Rear door speaker
6...
Speakers
Repair procedures
Inspection
1.
Troubleshooting for Speaker
(1)
Basic inspection of speaker
Inspect the sound from speaker after verifying that the speaker
mounting screws is removed and the wiring connector is connected
precisely to remove vibration transmitted from body trims and
surrounding parts...
