Hyundai Palisade: Cylinder Head Assembly / Cylinder Head Cover

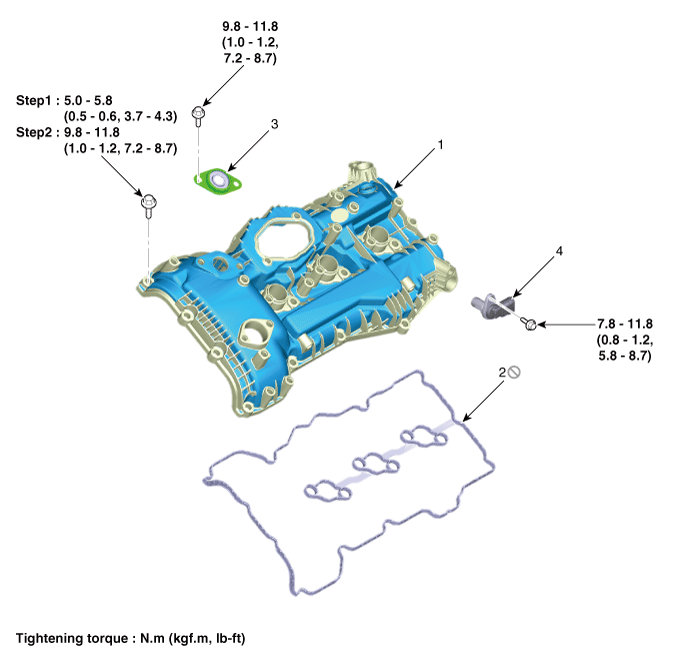

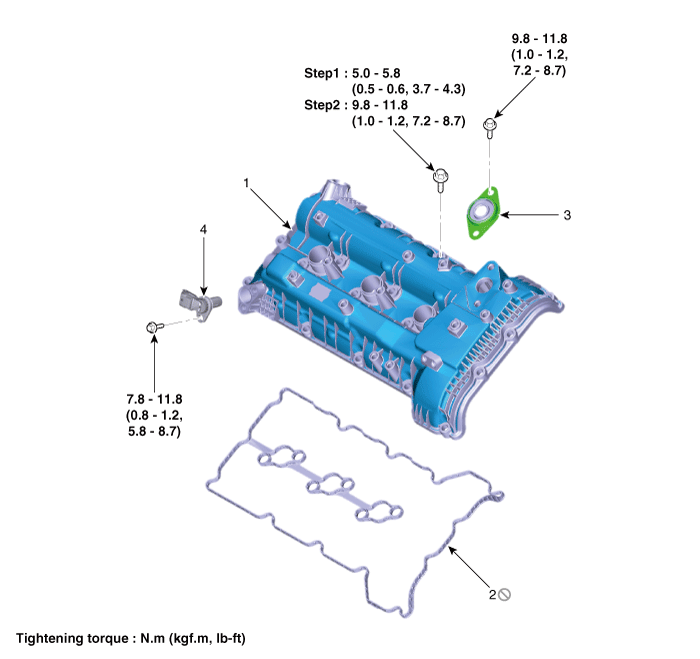

Components and components location
1. LH cylinder head cover
2. LH cylinder head cover gasket
|
3. LH exhaust CVVT OCV cap
4. Camshaft position sensor (CMPS)
|
1. RH cylinder head cover
2. RH cylinder head cover gasket
|
3. RH exhaust CVVT OCV cap
4. Camshaft position sensor (CMPS)
|
Repair procedures
[LH Cylinder Head Cover]
1. |
Remove the engine cover.
(Refer to Engine And Transaxle Assembly - "Engine Cover")
|
2. |
Remove the air cleaner assembly.
(Refer to Intake And Exhaust System - "Air Cleaner")
|
3. |

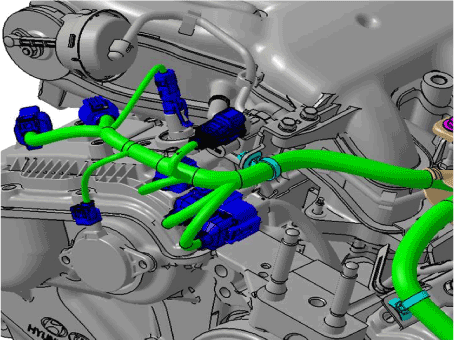

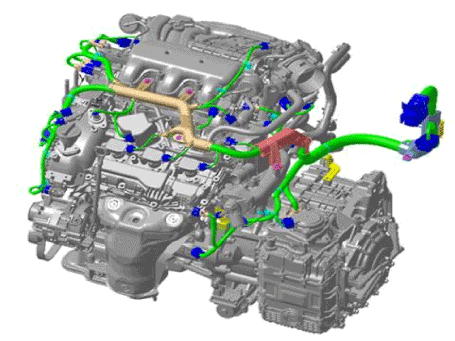

Disconnect the control wiring harness connectors and fasteners and remove
the wiring harness protectors from the LH cylinder head cover.
|
4. |
Remove the LH ignition coils.
(Refer to Engine Electrical System - "Ignition Coil")
|
5. |
Remove the high pressure fuel pump.
(Refer to Engine Control / Fuel System - "High Pressure Fuel Pump")
|
6. |

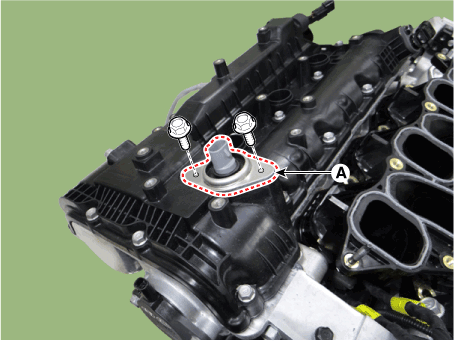

Remove the LH exhaust CVVT oil control valve cap (A).
|
7. |
Remove the oil level gauge rod mounting bolt.
(Refer to Lubrication System - "Oil Level Gauge & Pipe")
|
8. |

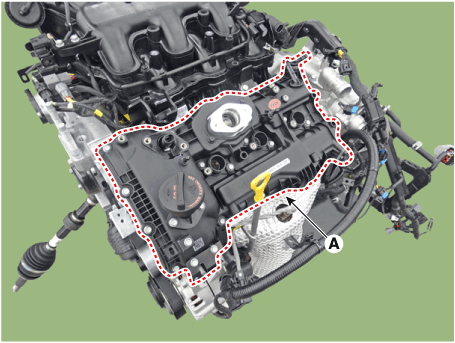

Remove the LH cylinder head cover (A) and gasket.
•
|
Cover the cylinder head with a clean shop rag or vinyl
cover to prevent foreign materials from entering.
|
|
|
[RH Cylinder Head Cover]
9. |
Remove the engine cover.
(Refer to Engine And Transmission Assembly - "Engine Cover")
|
10. |
Remove the air cleaner assembly.
(Refer to Intake And Exhaust System - "Air Cleaner")
|
11. |

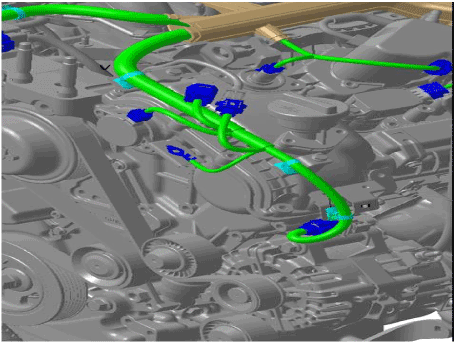

Disconnect the control wiring harness connectors and fasteners and remove
the wiring harness protectors from the RH cylinder head cover.
|
12. |
Remove the surge tank.
(Refer to Intake And Exhaust System - "Surge Tank")
|
13. |
Remove the RH ignition coils.
(Refer to Engine Electrical System - "Ignition Coil")
|
14. |

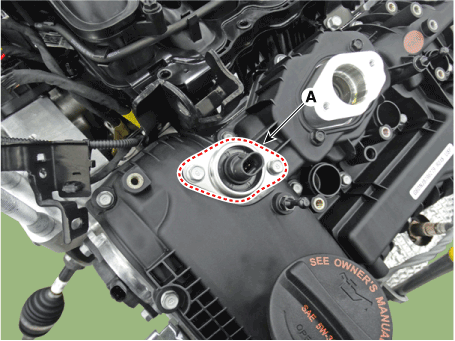

Remove the RH exhaust CVVT oil control valve cap (A).
|
15. |

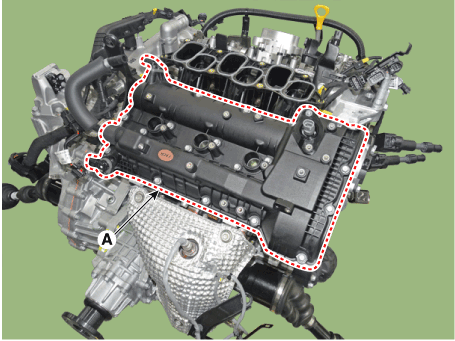

Remove the RH cylinder head cover (A) and gasket.
•
|
Cover the cylinder head with a clean shop rag or vinyl
cover to prevent foreign materials from entering.
|
|
|
[LH Cylinder Head Cover]
1. |

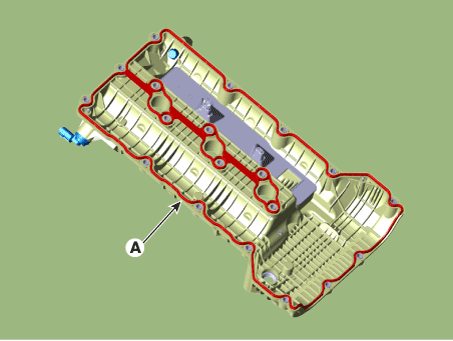

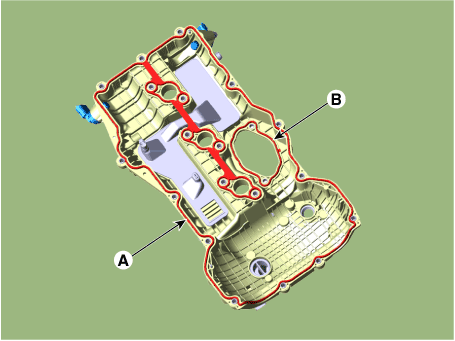

Install the new cylinder head cover gasket (A) and high pressure fuel
pump gasket (B).
|
2. |
Install the LH cylinder head cover.
•
|
Install the cylinder head cover with the exhaust OCV
cap removed.
|
•
|
To prevent engine oil leakage, install a new exhaust
OCV cap after installing the cylinder head cover.
|
|
(1) |

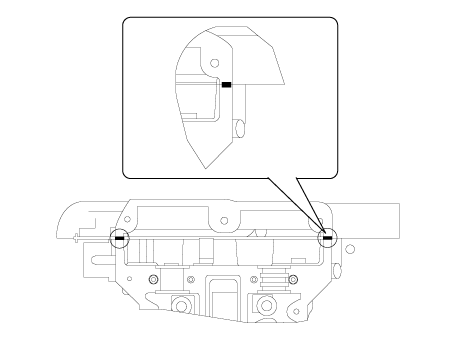

The hardening sealant on the upper area between timing chain
cover and cylinder head should be removed before assembling
cylinder head cover.
|
(2) |
Assemble within 5 minutes of applying the THREE BOND 1217H sealant.
Bead width : 4.5 mm (0.2 in.)
|
|
(3) |
The firing and / or blow out test should not be performed within
30 minutes of assembling the cylinder head cover.
|
(4) |

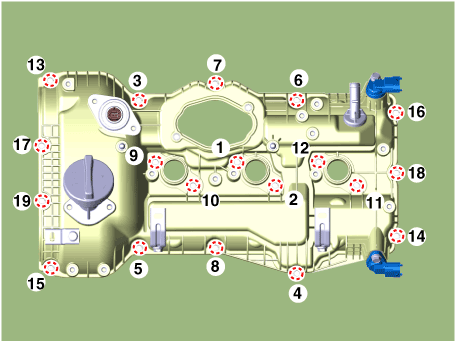

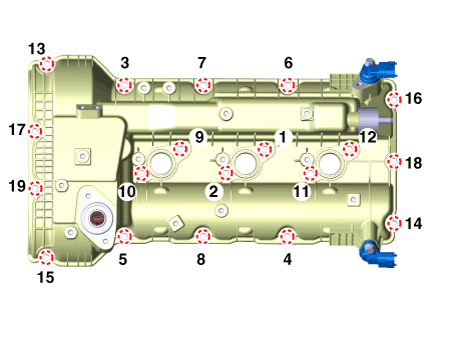

Install the LH cylinder head cover bolts in the following method.
Tightening torque
1st step : 4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3
lb.ft)
2nd step : 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7
lb.ft)
|
• |
Do not reuse cylinder head cover gasket.
|
|
|
|
3. |
Install the LH exhaust CVVT oil control valve cap (A).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
|
•
|
Install the cylinder head cover when the exhaust OCV
cap is removed.
|
•
|
To prevent engine oil leakage, install a new exhaust
OCV cap after installing the cylinder head cover.
|
•
|
If the seal is damaged in the removal and installation
procedures, replace the exhaust OCV cap with a new one.
|
|
|
4. |
Install in the reverse order of removal.
|
[RH Cylinder Head Cover]
1. |
Install the new cylinder head cover gasket (A).
|
2. |
Install the RH cylinder head cover.
•
|
Install the cylinder head cover with the exhaust OCV
cap removed.
|
•
|
To prevent engine oil leakage, install a new exhaust
OCV cap after installing the cylinder head cover.
|
|
(1) |
The hardening sealant on the upper area between timing chain
cover and cylinder head should be removed before assembling
cylinder head cover.
|
(2) |
Assemble within 5 minutes of applying the THREE BOND 1217H sealant.
Bead width : 4.5 mm (0.2 in.)
|
|
(3) |
The firing and/or blow out test should not be performed within
30 minutes of assembling the cylinder head cover.
|
(4) |
Install the RH cylinder head cover bolts in the following method.
Tightening torque :
1st step: 4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3
lb.ft)
2nd step: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7
lb.ft)
|
• |
Do not reuse cylinder head cover gasket.
|
|
|
|
3. |
Install the RH exhaust CVVT oil control valve cap (A).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
|
•
|
Install the cylinder head cover with the exhaust OCV
cap removed.
|
•
|
To prevent engine oil leakage, install a new exhaust
OCV cap after installing the cylinder head cover.
|
•
|
If the seal is damaged in the removal and installation
procedures, replace the exhaust OCV cap with a new one.
|
|
|
4. |
Install in the reverse order of removal.
|
