Hyundai Palisade: Automatic Transaxle Control System / Electronic Shift Actuator

Hyundai Palisade (LX2) 2020-2025 Service Manual / Automatic Transaxle System (A8LF1) / Automatic Transaxle Control System / Electronic Shift Actuator

Description and operation
Description

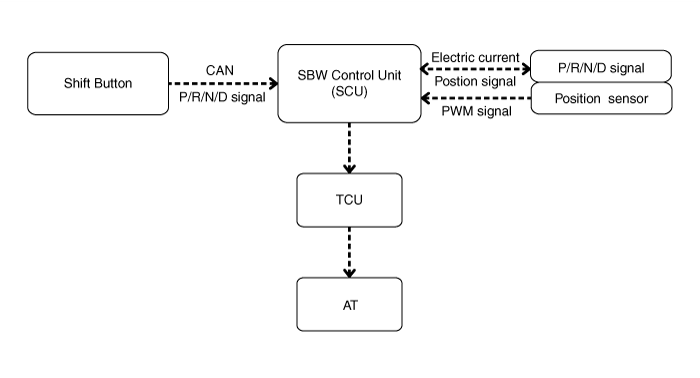

Controls the 4 position of P(Parking), R, N, D using the rotation of the motor of according to the electric signal when the shift button is operated.

Hyundai Palisade. Description and operation

Repair procedures
Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
3.
Remove the air duct and the air cleaner assembly.
(Refer to Engine Mechanical System - "Air Cleaner")
4.

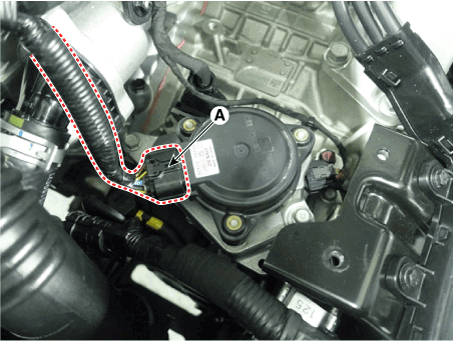

Disconnect the electronic shift actuator connector (A).

Hyundai Palisade. Repair procedures

5.

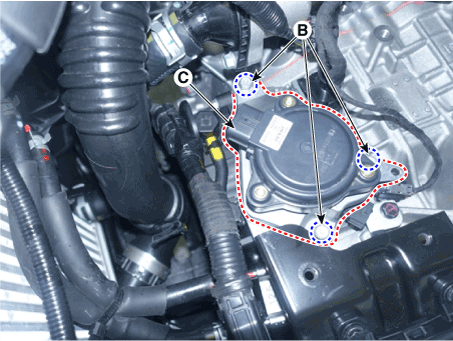

Remove the bolt (B) and then remove the electronic shift actuator (C).
Tightening torque :
20.6 - 26.5 N.m (2.1 - 2.7 kgf.m, 15.2 - 19.5 lb-ft)

Hyundai Palisade. Repair procedures

Installation
1.
To install, reverse the removal procedure.
