Hyundai Palisade: AVN System / External Amplifier

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / AVN System / External Amplifier

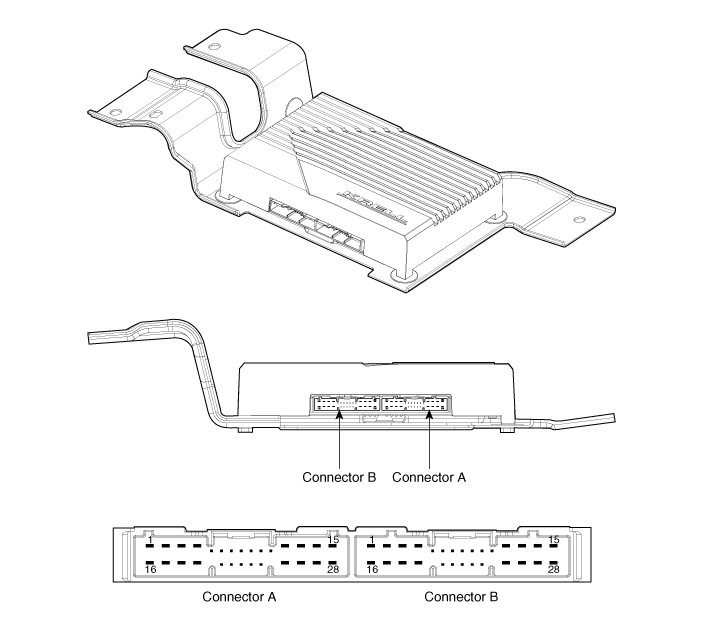

Components and components location
Components

Hyundai Palisade. Components and components location

Connector Pin Information
No
Connector A
Connector B
1
Battery (+)
Rear left door speaker (+)
2
Battery (+)
Rear left door speaker (-)
3
Battery (+)
Rear right door speaker (+)
4
Battery (+)
Rear right door speaker (-)
5
-
-
6
M-CAN (High)
-
7
M-CAN (Low)
-
8
ACC
-
9
Navigation voice (+)
-
10
-
-
11
-
-
12
Front left door speaker (+)
-
13
Front left door speaker (-)
Surround left speaker (+)
14
Front right door speaker (+)
Surround left speaker (-)
15
Front right door speaker (-)
Surround right speaker (+)
16
Ground
Surround right speaker (-)
17
Ground
Sub woofer speaker1 (+)
18
Ground
Sub woofer speaker1 (-)
19
Ground
Sub woofer speaker2 (+)
20
SPDIF (+)
Sub woofer speaker2 (-)
21
SPDIF (-)
-
22
SPDIF ground
-
23
Navigation voice (-)
-
24
IGN 1

25
Front left tweeter speaker (+)
-
26
Front left tweeter speaker (-)
-
27
Front right tweeter speaker (+)
Center speaker (+)
28
Front right tweeter speaker (-)
Center speake (-)

Repair procedures
Removal
External Amplifier
1.
Disconnect the negative (-) battery terminal.
2.
Remove the passenger seat assembly.
(Refer to Body - "Front Seat Assembly")
3.

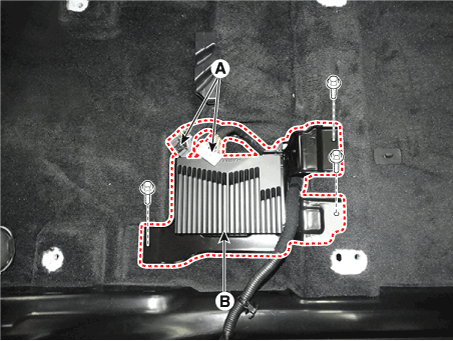

Remove the external amplifier (B) after disconnecting the connectors (A) and loosening the mounting bolts (3EA).

Hyundai Palisade. Repair procedures

Installation
External Amplifier
1.
Install the external amplifier after connecting the connector.
2.
Install the passenger seat assembly.
Hyundai Palisade. Repair procedures
Make sure the speaker and related connectors are plugged in properly.
