Components

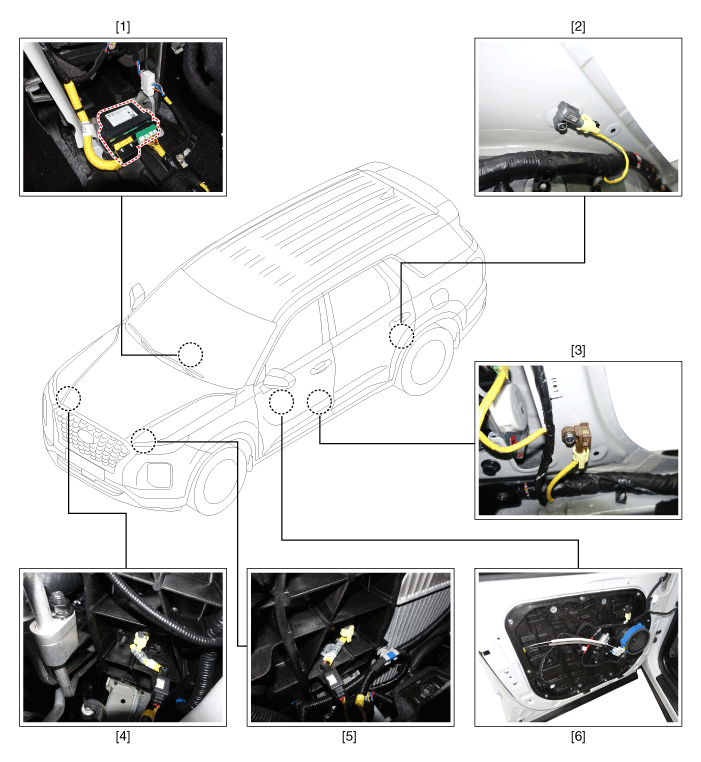

Hyundai Palisade. Components and components location

1. Supplemental Restraint System Control Module (SRSCM)
2. Rear Gravity side Impact Sensor (G-SIS)
3. Front Gravity side Impact Sensor (G-SIS)
4. Front impact sensor (FIS)
5. Front impact sensor (FIS)
6. Pressure Side Impact Sensor (P-SIS)

    SRSCM

    ..

    SRS Control Module (SRSCM)

    Components and components location Components [LH] 1. Supplemental Restraint System Control Module (SRSCM) Description and operation Description The primary purpose of the SRSCM (Supplemental Restraints System Control Module) is to discriminate between an event that warrants restraint system deployment and an event that does not...
