Hyundai Palisade: Timing System / Front Oil Seal

Hyundai Palisade (LX2) 2020-2024 Service Manual / Engine Mechanical System / Timing System / Front Oil Seal

Repair procedures

Removal

•	Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift. (Refer to General Information - "Lift and Support Points")

1.	Remove the crankshaft damper pulley. (Refer to Timing System - "Crankshaft Damper Pulley")

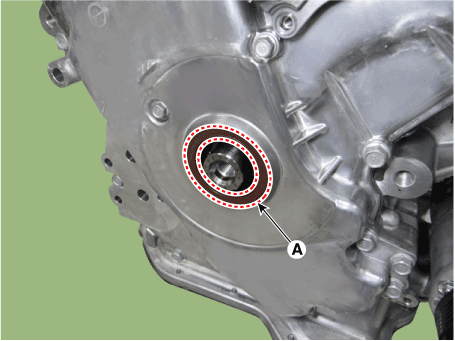

2.	Remove the front oil seal (A).

Installation

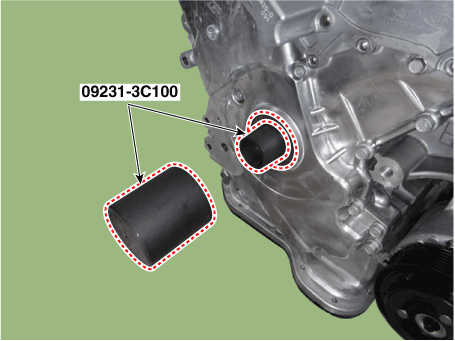

Using SST(09231-3C100), install front oil seal.

Hyundai Palisade. Repair procedures

•	Always use new oil seal.

2.	Install the crankshaft damper pulley. (Refer to Timing System - "Crankshaft Damper Pulley")
