Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Hood / Hood Assembly

Components and components location

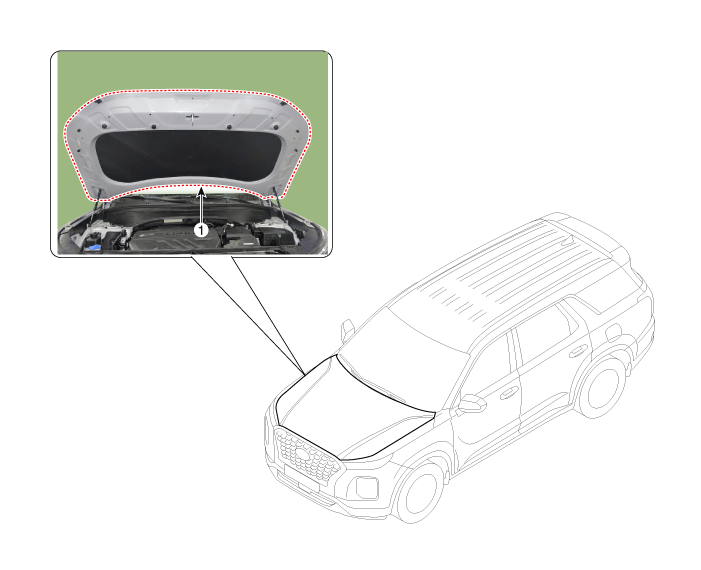

Component Location

Hyundai Palisade. Components and components location

1. Hood assembly

Repair procedures
Replacement
Hyundai Palisade. Repair procedures
Be careful not to damage the hood and body.
Removing or installing the hood requires an assistant.
1.

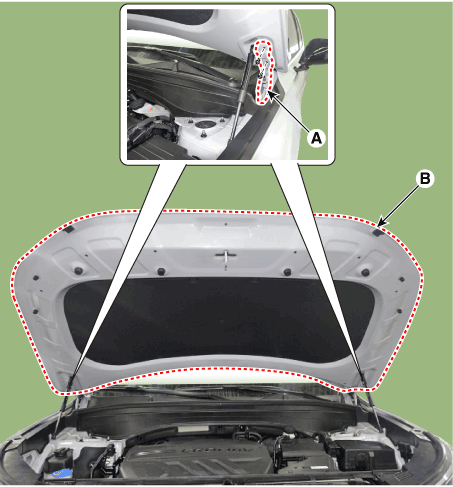

After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).
Tightening torque :
18.6 - 25.5 N.m (1.9 - 2.6 kgf.m, 13.7 - 18.8 lb-ft)

Hyundai Palisade. Repair procedures

2.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
Make sure the hood locks / unlocks and opens / closes properly.
Adjust the hood alignment.
