Hyundai Palisade: Head Restraints / Rear seat head restraints

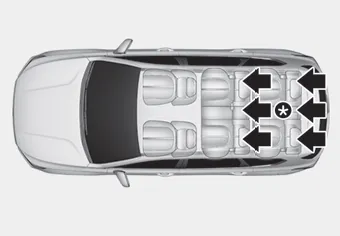

The rear seats are equipped with head restraints in all the seating positions for the passenger's safety and comfort.
CAUTION
- Adjust the head restraint so the middle of the head restraint is at the same height as the height of the top of the eyes.
- When seated on the rear seat, do not adjust the height of the head restraint to the lowest position.
Adjusting the height up and down

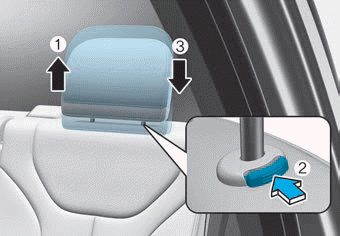

To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2) on the head restraint support.
2. Lower the head restraint to the desired position (3).
Removal/Reinstallation

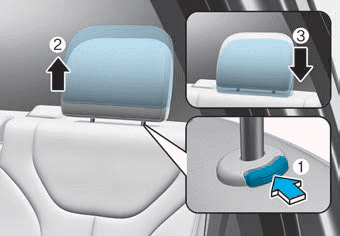

To remove the head restraint:
1. Raise the head restraint as far as it can go.
2. Press the head restraint release button (1) while pulling the head restraint up (2).
To reinstall the head restraint:
1. Put the head restraint poles into the holes (3) while pressing the release button (1).
2. Adjust the head restraint to the appropriate height.
Front seat head restraints
The vehicle's front and passenger's
seats are equipped with adjustable
head restraints for the passengers
safety and comfort.
Adjusting the height up and down
To raise the head restraint:
1...
Folding 3rd row headrest
(except for center)
The headrest will fold down automatically
when folding the seatback.
To fold the headrest manually:
- Pull the strap.
To unfold the headrest manually:
- Raise the headrest manually...
